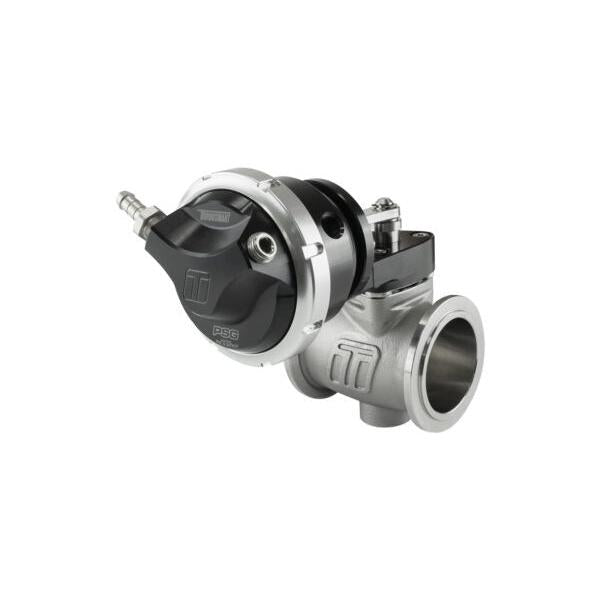

PSG40 Pneumatic Straight Gate 6psi Black
Buy now pay later,no extra cost!
Payments from $99.26 with
The Turbosmart StraightGate40 Pneumatic External Wastegate is the most compact butterfly-style external wastegate in the Turbosmart range, designed for applications where installation space is limited without compromising boost control or flow. Its 40 mm zero-offset butterfly valve delivers exceptional exhaust flow and near-linear boost control across the entire operating range.
Using a self-balancing butterfly valve, the StraightGate40 reduces the force required for actuation under high exhaust drive pressure, allowing an exceptionally wide tuning window. Supplied with 6 psi base springs, the GenV pneumatic actuator supports both single and twin-port boost control for maximum tuning flexibility.
Features
- 40 mm (1.57") zero-offset butterfly valve
- High-flow capacity of 217.4 CFM (6.16 m³/min)
- Self-balancing butterfly design for precise boost control
- Near-linear valve operation across the full boost range
- GenV pneumatic actuator with 6 psi base spring
- Suitable for single or twin-port boost control
- 630 stainless steel butterfly valve and shaft
- 347 stainless steel main body
- Heat-treated 431 stainless steel V-band clamps
- 6262-T6 anodised aluminium actuator and bracket
- Turbosmart locking collar ring
- Stainless steel (N60) linkages and control arm
- Base spring options available from 6 psi to 42 psi
Designed for compact engine bays, the StraightGate40 delivers outstanding flow, fast response, and precise boost control for high-performance street and motorsport applications.
