Mishimoto Factory-Fit Boot Kit, Fits Ford 6.4l Powerstroke 2008-2010
Buy now pay later,no extra cost!
Payments from $59.04 with
Mishimoto is proud to release a direct-fit silicone boot kit with DuraCore™ technology designed specifically for the 6.4L Ford Powerstroke. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto Silicone Diesel Boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability, this kit includes Mishimoto Constant Tension T-bolt Clamps for accurate and consistent holding power. As with all of our Powerstroke performance parts, this boot kit comes with the Mishimoto Lifetime Warranty.
Features:
- Direct fit for the 2008–2010 Ford 6.4L Powerstroke
- Replaces weak factory piping
- DuraCore™ technology provides superior resistance to heat, pressure, fuel, and oil
- Includes high-quality constant tension T-bolt clamps
- Mishimoto Lifetime Warranty

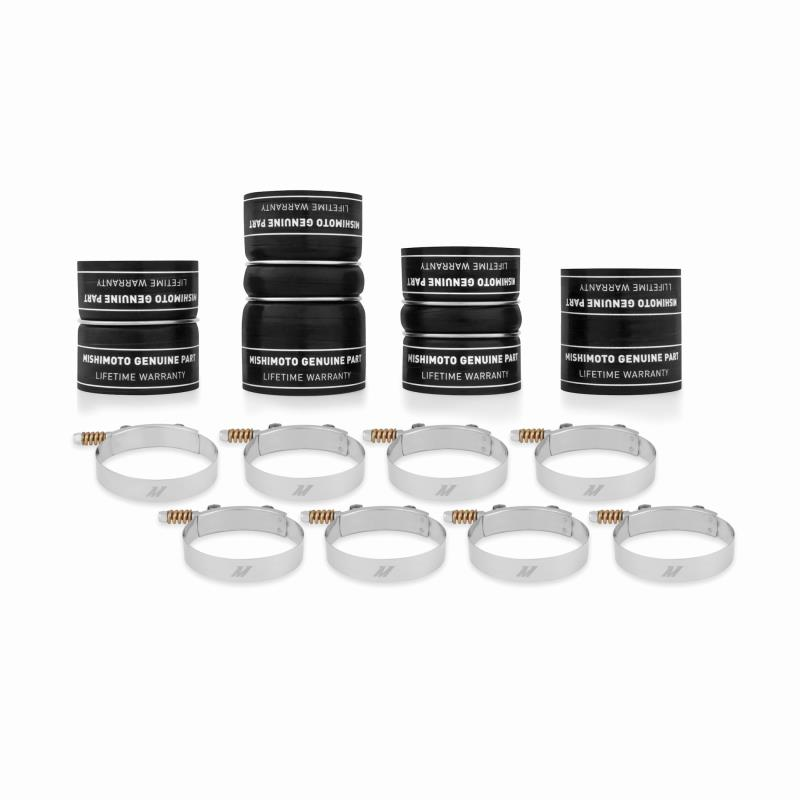

Includes:

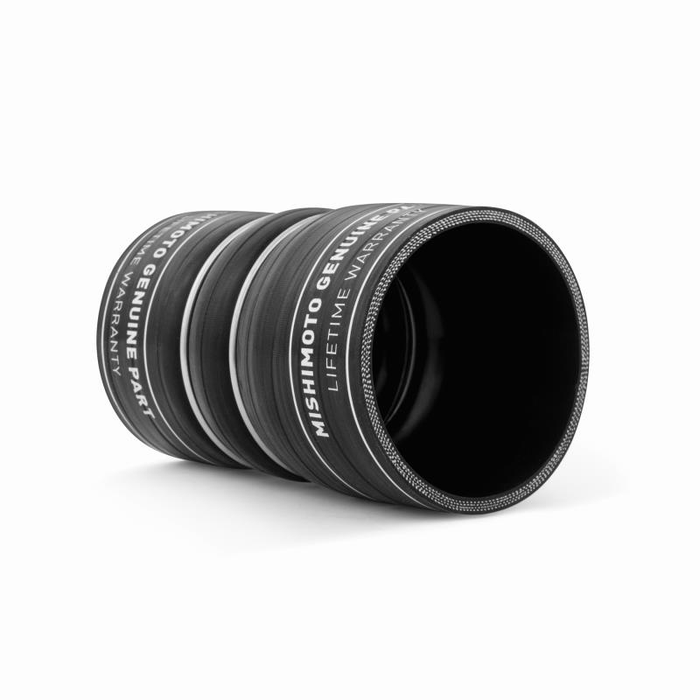

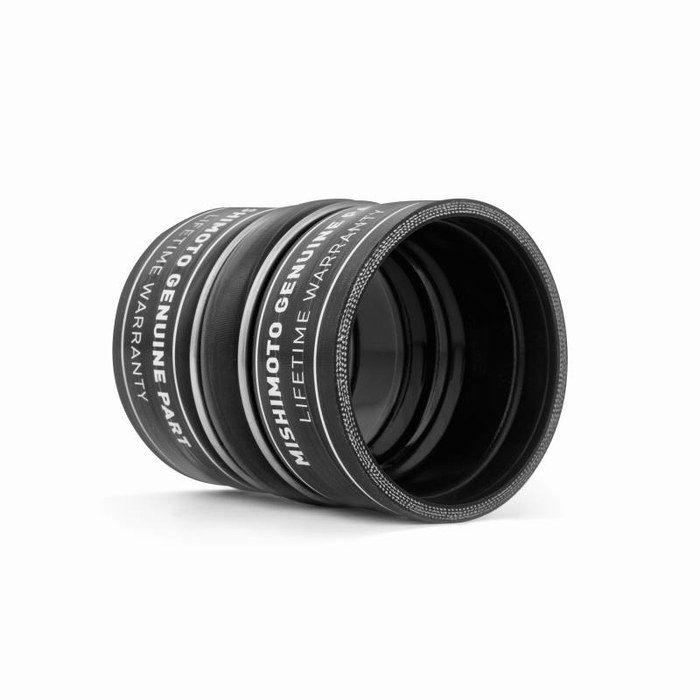

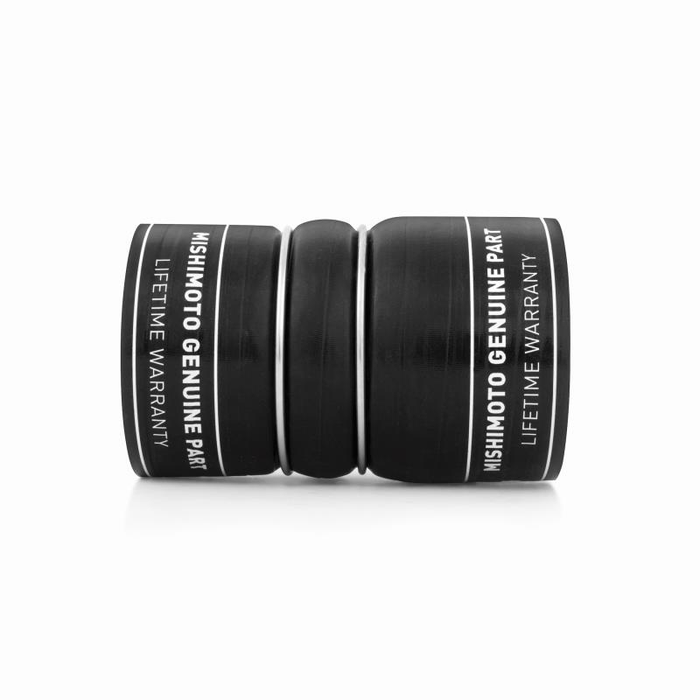

- (4) Silicone Boots with DuraCore™ Technology

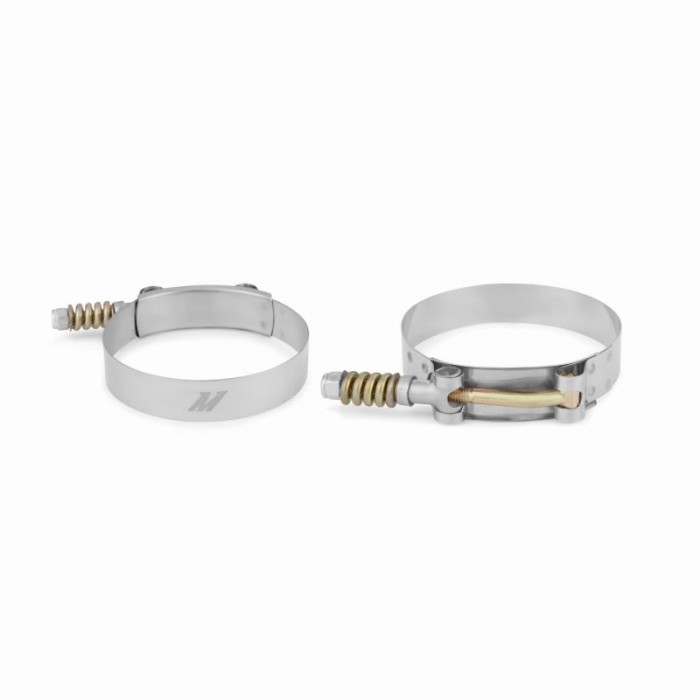

- (8) Constant Tension T-Bolt Clamps
- Mishimoto Lifetime Warranty
Notes:
Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Specifications:
| Material | Silicone DuraCore™ |
| Exterior Material | Silicone |
| Ext. Material Temp. Rating | 428°F |
| Int. Layer Temp. Rating | 572°F |

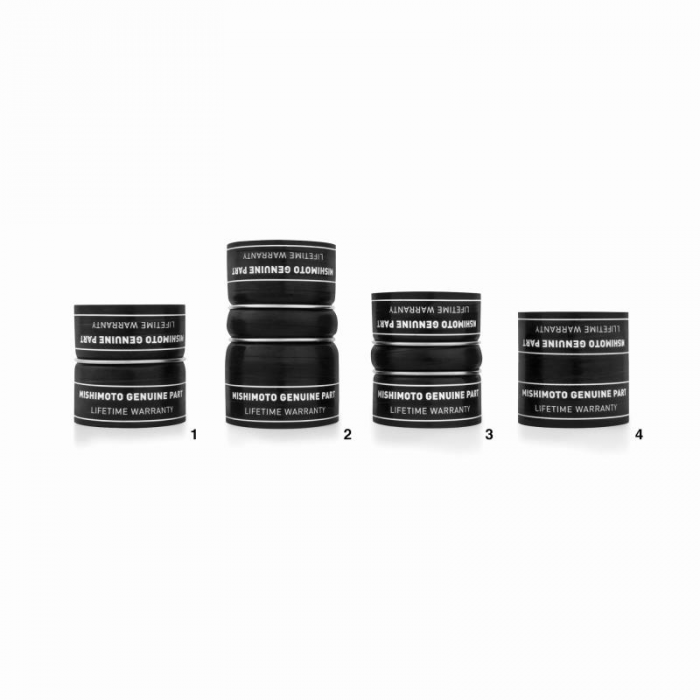

| Factory Part Number | Boot 1: 8C3Z-6W650-A Boot 2: 8C3Z-6W651-A Boot 3: 8C3Z-6N651-A Boot 4: 8C3Z-6N650-A |
| Interior Layer | DuraCore™ |
| Interior Material | Heat-Resistant Embedded Fibers |
| Also Fits | 2008-2010 Ford F-250 w/ 6.4L Powerstroke 2008-2010 Ford F-350 w/ 6.4L Powerstroke 2008-2010 Ford F-450 w/ 6.4L Powerstroke |
| Outer Diameter | Boot 1: 3.40" Boot 2: 3.40", 3.60" Boot 3: 3.40" Boot 4: 3.40" |
| Max Temp | 428°F |
| Inner Diameter | Boot 1: 3.00" Boot 2: 3.00", 3.20" Boot 3: 3.00" Boot 4: 3.00" |
