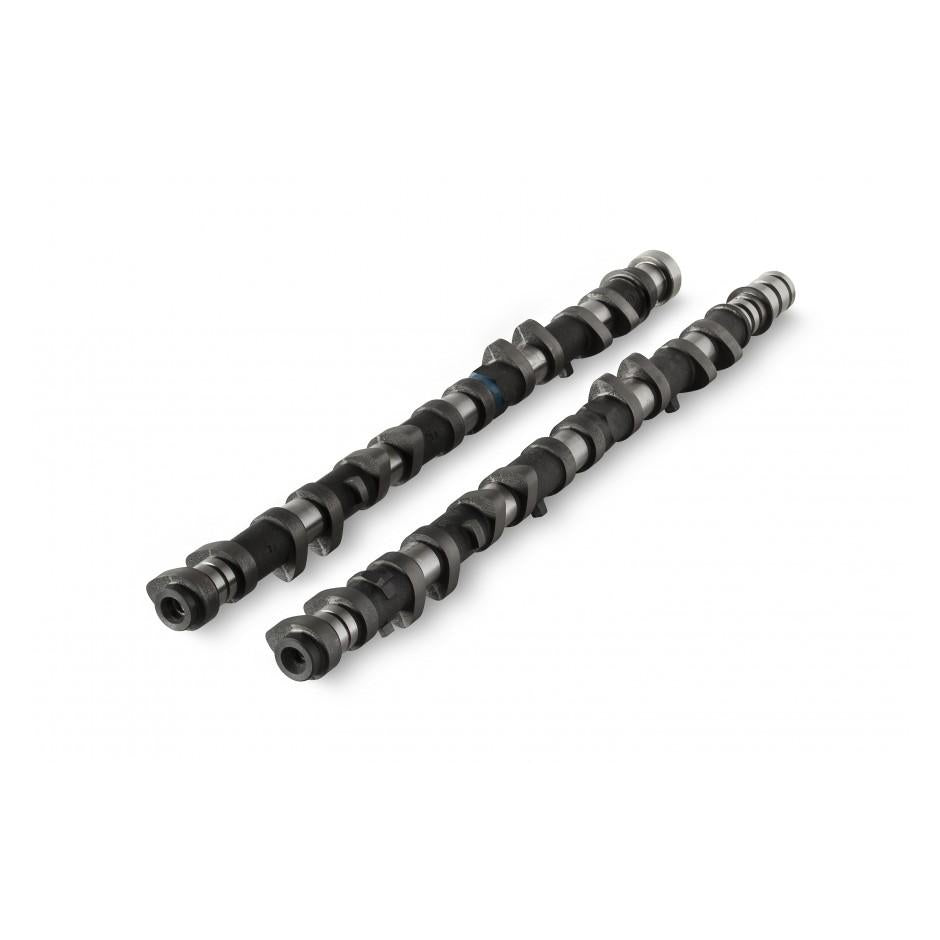

Kelford Cams V229-B Toyota 1JZ VVTi Billet Race Cams
Buy now pay later,no extra cost!
Payments from $147.08 with

Note: Please check availability with us before ordering.
260/260 Degrees advertised duration. 9.35mm/9.35mm lift.
Additional Information:
Street performance cams to suit turbo and ECU upgrade. Suits up to 30 lb boost and 7500 RPM with our recommended valve spring. Will suit stock valve spring with stock redline
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| TOYOTA | 1JZ VVTi | V229-B | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 9.60mm | Exhaust: | 9.60mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 9.35mm | Exhaust: | 9.35mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 260 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 4 ATDC | EVO: | 50 BBDC | |
| IVC: | 34 ABDC | EVC: | 8 BTDC | |||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | ||
| VALVE | Lift @ TDC | Intake: | 0.68mm | Exhaust: | 0.26mm |
