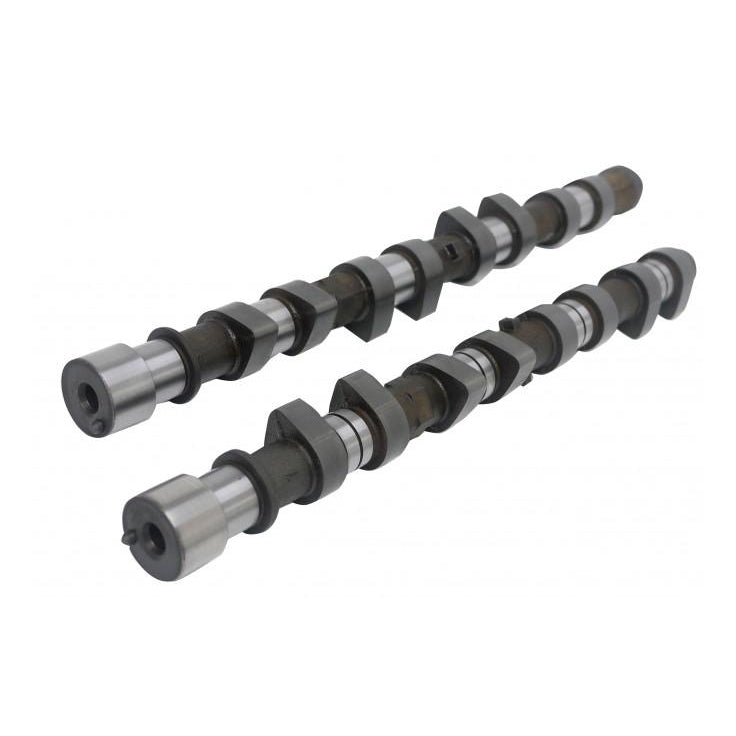

Kelford Cams T203-B Mazda Miata 323 B6 Turbo Performance Cam
Buy now pay later,no extra cost!
Payments from $119.48 with

Note: Please check availability with us before ordering.
264/264 Degrees advertised duration, 8.95mm/8.95mm lift.
Additional Information:
High performance cams to suit hot street or rally applications. Requires KVS12 valve springs.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| MAZDA | Miata 323 B6 Turbo | T203-B | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 8.95mm | Exhaust: | 8.95mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 8.95mm | Exhaust: | 8.95mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 1 BTDC | EVO: | 43 BBDC | ||
| IVC: | 41 ABDC | EVC: | 1 BTDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 112 | |||
| VALVE | Lift @ TDC | Intake: | 1.10mm | Exhaust: | 0.96 | ||
