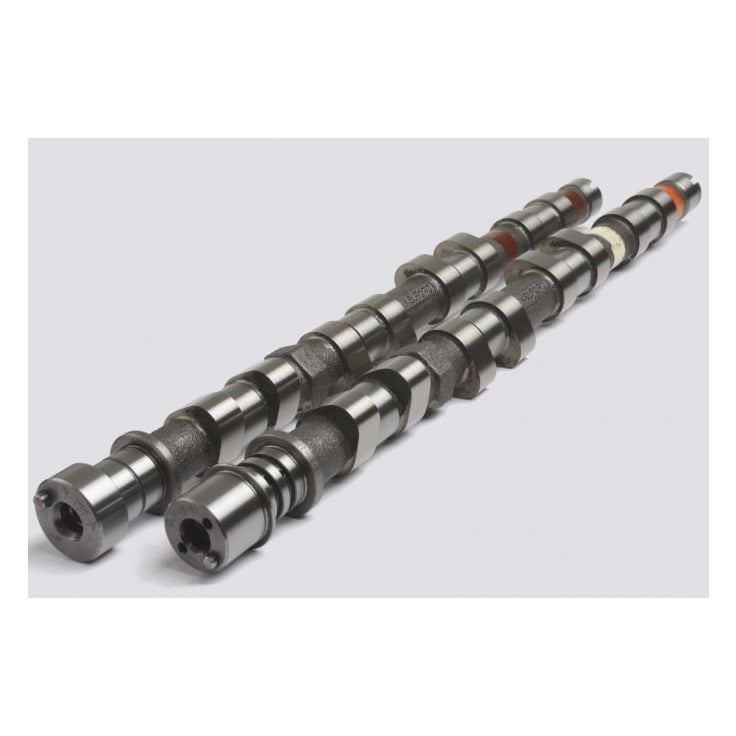

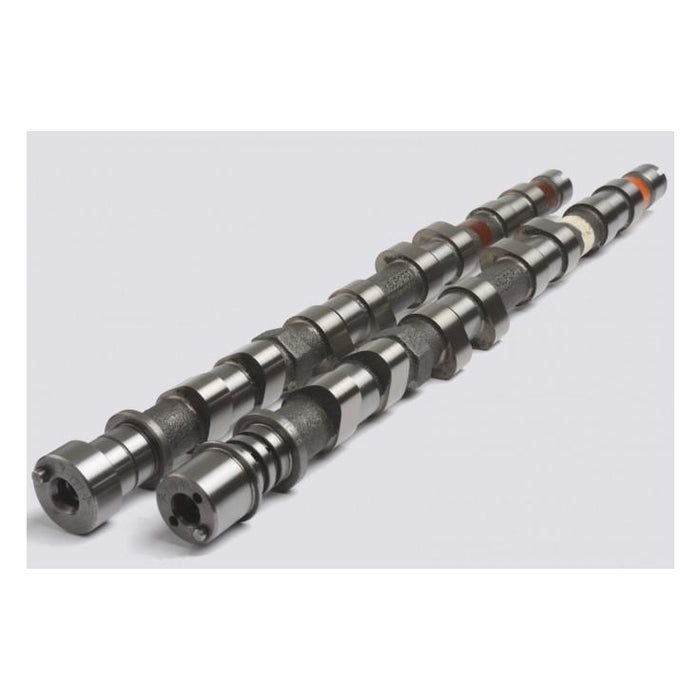

Kelford Cams 9-TX280 Mitsubishi 4G63 EVO9 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $111.65 with

Note: Please check availability with us before ordering.
Additional Information
High HP racing cams. These camshafts suit well built racing engines up to 35lb boost and 9000 RPM with our recommended valve springs.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 9 MIVEC | 9-TX280 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.65mm | Exhaust: | 6.36mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 280 | Exhaust: | 276 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 238 | Exhaust: | 230 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 11 ATDC | EVO: | 50 BBDC | ||
| IVC: | 69 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 0.37mm | Exhaust: | 1.00 | ||
