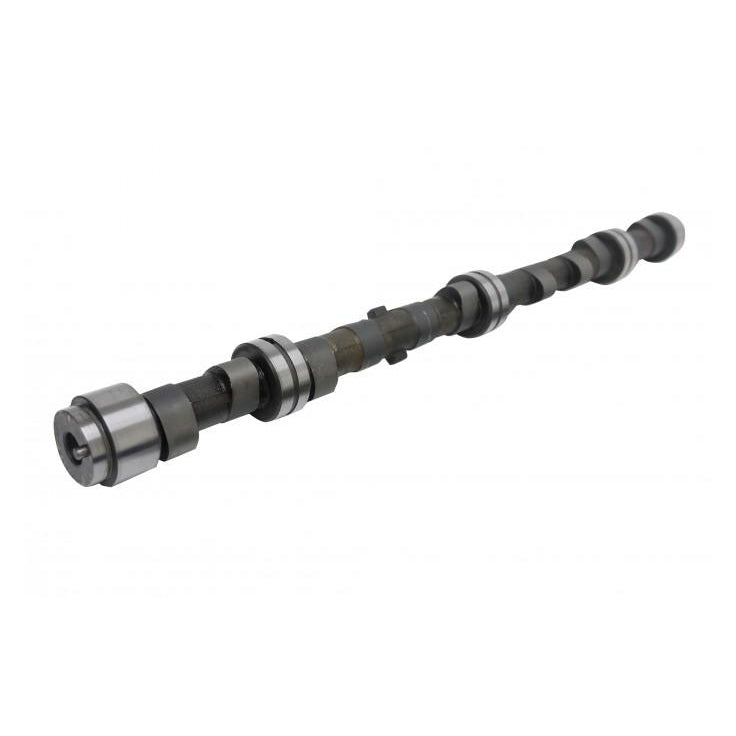

Kelford Cams 222-C Nissan L20-28 OHC (6cyl) Performance Cam

$941.85 NZD
SKU KC222-C
Buy now pay later,no extra cost!

Payments from $94.18 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

296/296 Degrees advertised duration, 11.60mm/11.60mm lift.

Additional Information:

Midrange performance cam to suit well built motors on 45mm side draught carburettors or individual runner fuel injection, ideal all-round performance for club level rally or track racing.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN L SERIES 222-C
Valve Clearance: Intake: 0.15mm Set HOT at the CAM
  Exhaust: 0.15mm Set HOT at the CAM

Cam Lift:   Intake: 7.88mm Exhaust: 7.88mm
Rocker Ratio:   Intake: 1.5 Exhaust: 1.5
Nett Valve Lift:   Intake: 11.60mm Exhaust: 11.60mm
Advertised Duration @ 0.10mm Intake: 296 Exhaust: 296
Duration @ 1.00mm VALVE LIFT Intake: 256 Exhaust: 256
Timing @ 1.00mm VALVE LIFT IVO: 26 BTDC EVO: 52 BBDC
    IVC: 50 ABDC EVC: 24 ATDC
Suggested Centre Lines:   Intake: 102 Exhaust: 104
VALVE Lift @ TDC Intake: 3.76mm Exhaust: 3.5
