CONTACT US TO ORDER - OUT OF STOCK

This product is currently out of stock. Enter your details delow and the Speed Science team will be in touch.

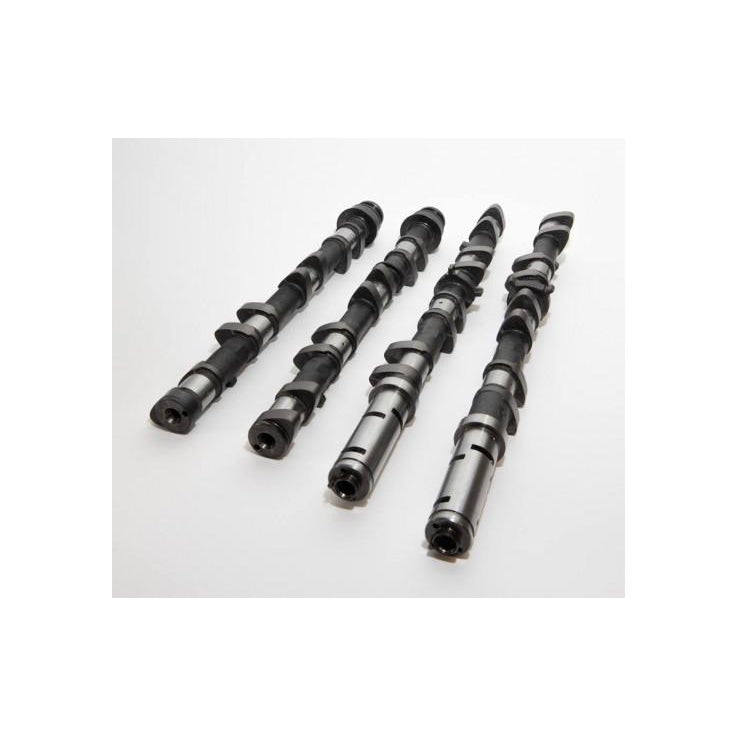

Kelford Cams 208-C 1UZ-3UZ VVTI Performance Cams (NA)

$2,643.85 NZD
SKU KC208-C
Buy now pay later,no extra cost!

Payments from $264.38 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

272/270 Degrees advertised duration. 11.20mm/10.60mm lift.

Additional Information:

10.5/1+ Comp, ITB's or good manifold, 8000rpm. Head needs clearance around bucket bores for cams to turn. Requires spring upgrade & retainer to seal modification.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 1UZ-VVTI 208-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.45mm Exhaust: 10.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.20mm Exhaust: 10.60mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 34 BTDC EVO: 44 BBDC
    IVC: 26 ABDC EVC: 12 ATDC
Suggested Centre Lines:   Intake: 86 Exhaust: 106
Lift @ TDC Intake: Exhaust:
