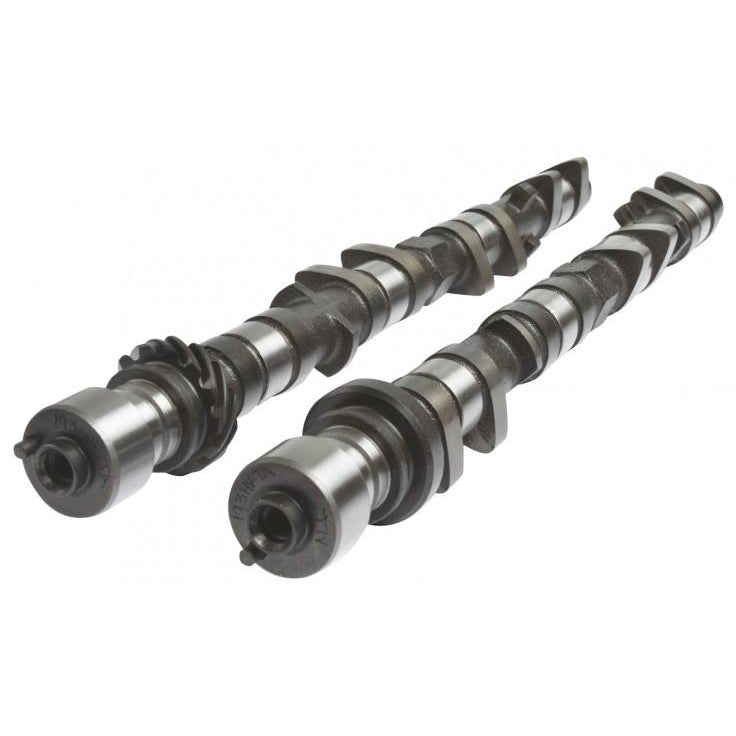

Kelford Cams 193-B Toyota 4A-GE 16V (Stock Shim) Performance Cam
Buy now pay later,no extra cost!
Payments from $124.08 with

Note: Please check availability with us before ordering.
284/278 Degrees advertised duration. 9.20mm/8.50mm lift.
Additional Information:
Rally cams for great midrange power.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| TOYOTA | 4A-GE 16v | 193-B | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 9.45mm | Exhaust: | 8.80mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 9.20mm | Exhaust: | 8.50mm | ||
| Advertised Duration @ | 0.30mm | Intake: | 284 | Exhaust: | 278 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 244 | Exhaust: | 236 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 18 BTDC | EVO: | 44 BBDC | |
| IVC: | 46 ABDC | EVC: | 12 ATDC | |||
| Suggested Centre Lines: | Intake: | 104 | Exhaust: | 106 | ||
| VALVE | Lift @ TDC | Intake: | 2.70mm | Exhaust: | 2.06 |
