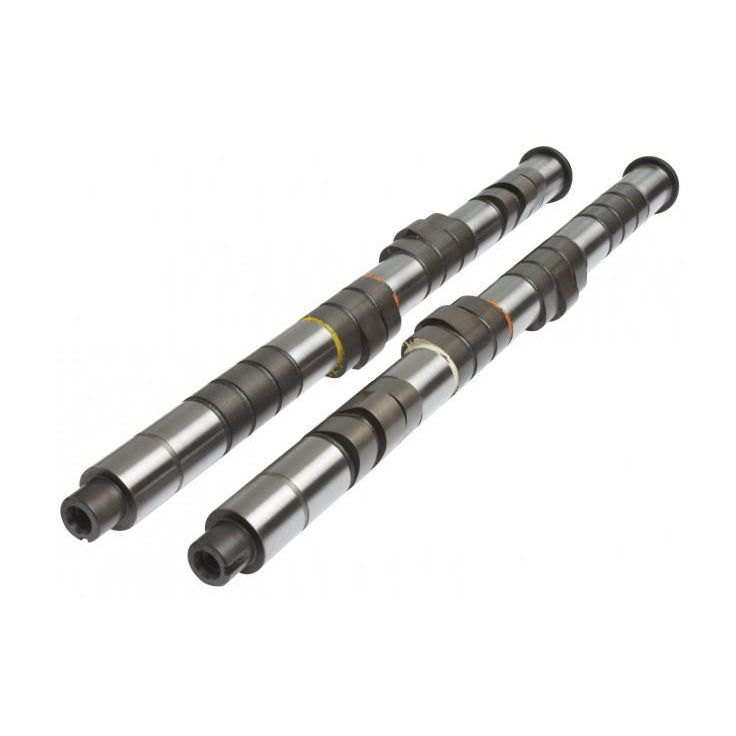

Kelford Cams 176-TS Honda B16A/B18C VTEC Turbo Street

$1,059.00 NZD
SKU KC176-TS
Buy now pay later,no extra cost!

Payments from $105.90 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

274/274 Degrees advertised duration. 11.25mm /11.00mm lift.

Additional Information

The ultimate street turbo cams to suit 350-600HP engines. Valve timing is optimised for turbo setups helping produce a broader power band compared to OEM cams.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
HONDA B16A/B18C VTEC c
Valve Clearance: Intake: 0.30mm Set HOT at the VALVE
  Exhaust: 0.30mm Set HOT at the VALVE

Cam Lift:   Intake: 7.45mm Exhaust: 7.29mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 11.25mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 274 Exhaust: 274
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 10 BTDC EVO: 52 BBDC
    IVC: 46 ABDC EVC: 4 ATDC
Suggested Centre Lines:   Intake: 108 Exhaust: 114
VALVE Lift @ TDC Intake: 1.96mm Exhaust: 1.40
