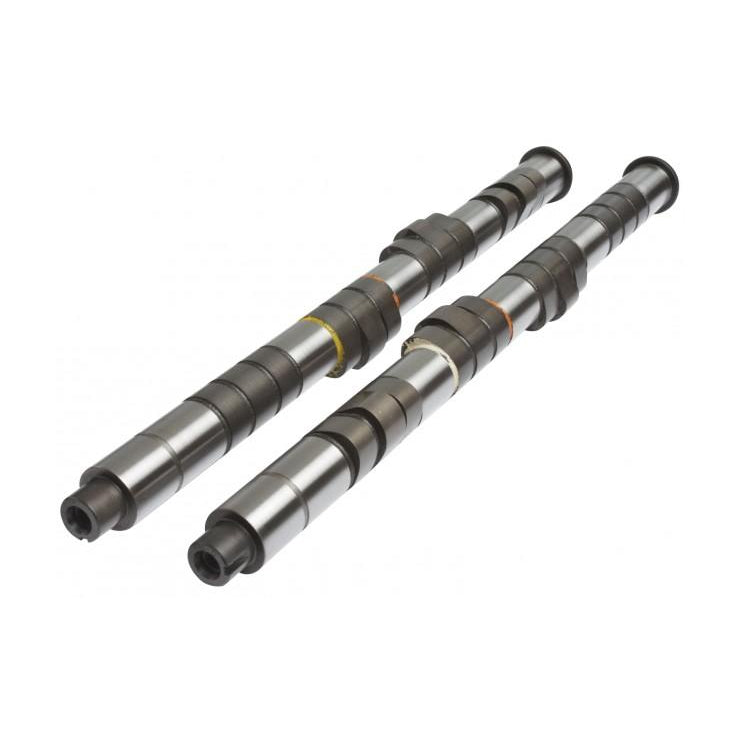

Kelford Cams 176-C Honda B16A/B18C VTEC Performance Cam

$1,059.00 NZD
SKU KC176-C
Buy now pay later,no extra cost!

Payments from $105.90 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

294/286 Degrees advertised duration. 11.80mm /11.30mm lift.

Additional Information

B Series racing cams. Large low lobe spec for improved torque in lower RPM range. Super strong midrange power, rough idle on plenum manifolds. Primary & Secondary lobe specifications are: Intake 270 & 270 / Exhaust 262 & 262 Degrees advertised duration. Intake 11.00mm & 11.00mm / Exhaust 10.00mm & 10.00mm lift.

Please read the breaking in procedure in tips and tricks.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
HONDA B16A/B18C VTEC 176-C
Valve Clearance: Intake: 0.30mm Set HOT at the VALVE
  Exhaust: 0.30mm Set HOT at the VALVE

Cam Lift:   Intake: 7.81mm Exhaust: 7.48mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 11.80mm Exhaust: 11.30mm
Advertised Duration @ 0.10mm Intake: 294 Exhaust: 286
Duration @ 1.00mm VALVE LIFT Intake: 264 Exhaust: 256
Timing @ 1.00mm VALVE LIFT IVO: 30 BTDC EVO: 52 BBDC
    IVC: 54 ABDC EVC: 24 ATDC
Suggested Centre Lines:   Intake: 102 Exhaust: 104
VALVE Lift @ TDC Intake: 4.70mm Exhaust: 3.86
