K-Tuned Race Header 409 Series Stainless Steel - DC5/EP3
by K-Tuned
$1,056.78 NZD
SKU KRH-RSX-409
Buy now pay later,no extra cost!
Payments from $105.67 with
Enjoy now. Pay Later. Interest free. Learn More

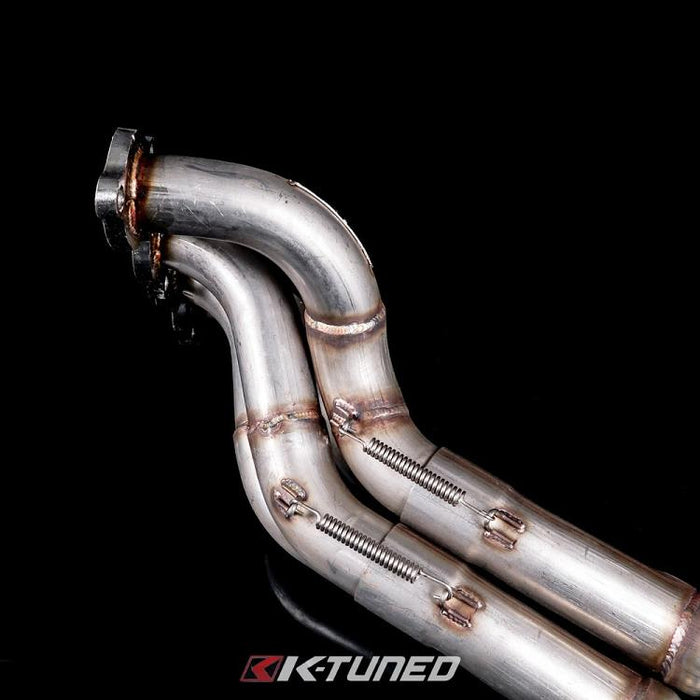

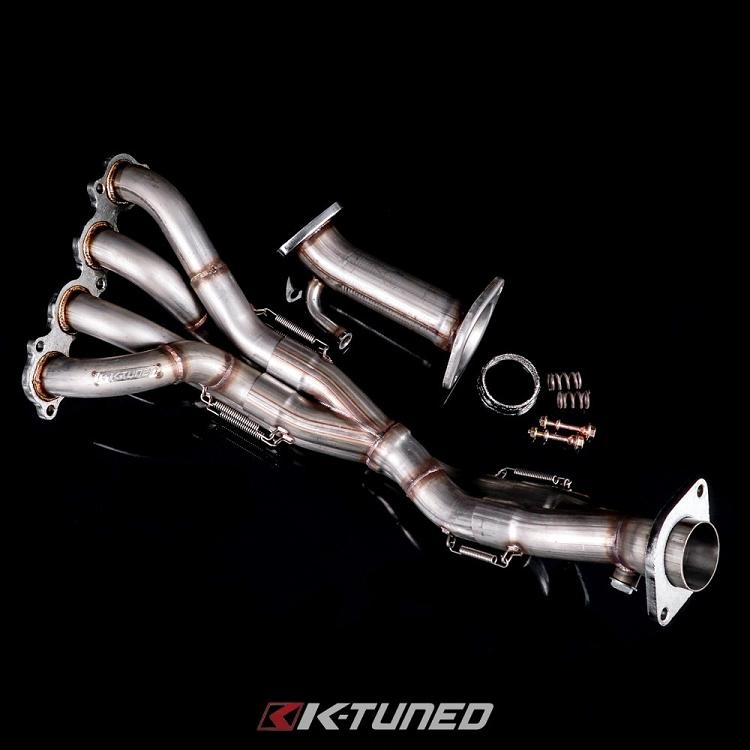

The goal with any performance header design, is to get exhaust gases to flow out of the engine faster and more efficiently, which in turn will produce more power and performance. The K-Tuned RSX Header was designed with this exact theory in mind and utilizes a proven 4-2-1 Tri-Y design with extremely smooth slip fit merge transitions to increase the exhaust flow and power output of the Honda K engine. Like most Tri-Y designs, power gains are seen almost everywhere in the power band, not just the top end. Fitment is equally if not more important to us than function and although the subrame and swaybar on the RSX presented some design challanges, the final fitment was definitely worth some extra time. The secondary tubing passes perfectly through this tight area with extra clearance for engine movement.

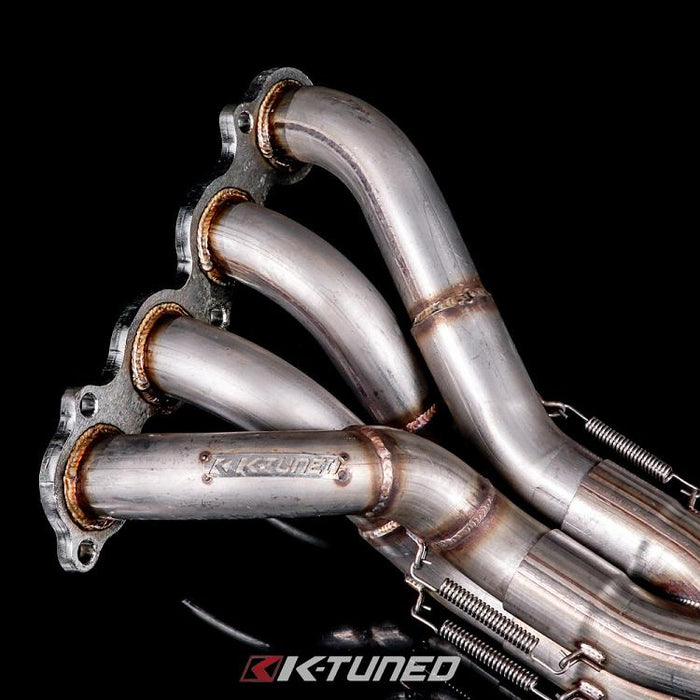

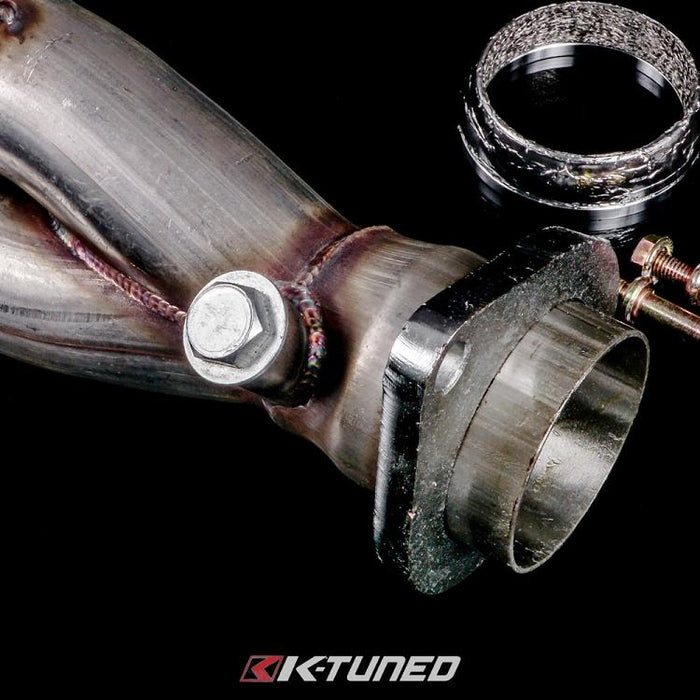

The header features stepped piping beginning with 44mm primaries that progressively move into 48mm, then 50mm secondaries and finally a 64mm or 2.5" exit. Our 409 Series RSX Race Header is assembled with mandrel bent, 409 series steel tubing and is fully tig welded. We also use a slightly thicker gauge tubing that allows for better weld penetration and additional strength. The CNC cut 3/8" thick flanges are also double welded and then ported for optimum flow at entry and exit. This header directly replaces the OEM 2 piece design and eliminates the catalytic converter so we included a short 2.5" test-pipe with defouler for the secondary O2 sensor. Be sure to check out our 3" Oval Tube Exhaust System for the RSX if you haven't seen it already.
Features:
- Fits RSX with K20 engine ONLY
- 4-2-1 Tri-Y Design
- 409 Series Steel
- CNC cut 3/8" thick SS Flanges
- 2.5" Outlet
Applications:
- 02-06 RSX DC2 Type-S
- 02-06 RSX Base / Premium models with Type S Exhaust.
- 01-05 Civic EP3 with Type S Exhaust
Note:
- Donut gasket can be replaced by OEM Honda part (18229-PCX-003), you will have to reuse the metal ring.
