K-Tuned Race-Spec Billet Shifter w'Pro Shift Cut - DC5/K-Swap
Buy now pay later,no extra cost!
Payments from $233.77 with

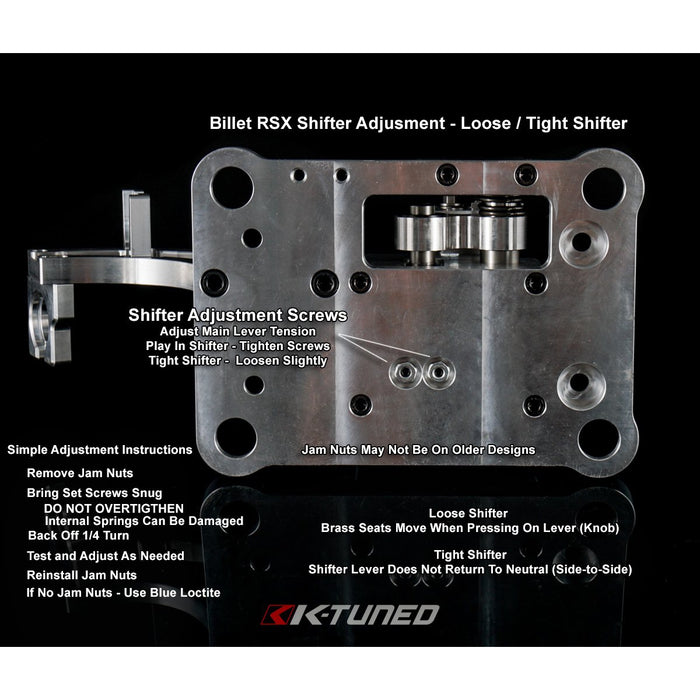

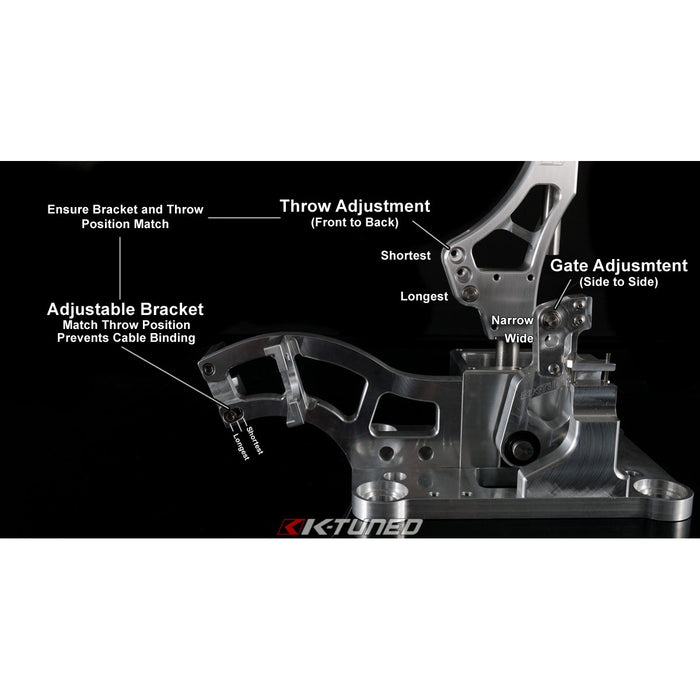

If you take a look inside some of the fastest K-powered cars, there is a pretty good chance that you'll find our award winning K-Tuned Billet RSX Shifter mounted on the floor beside the driverÍs seat. Over the last few years, our shifters have set the bar pretty high and we have just raised it again by releasing our Race-Spec Billet RSX Shifter with a Programmable Shift Cut Sensor. This sensor is mounted on the back of the shifter and uses Hall Effect technology (just like our TPS) to accurately measure front to back shift throw and convert it into a voltage reading. The system functions very similar to a TPS sensor but instead of measuring throttle plate position it measures actual shifter positon. This information can be very useful for some race applications because the data the sensor provides can be connected to a programmable ecu input, to signal an ignition timing cut at set points during shifts. Operation is comparable to expensive strain gauge setups with one pretty big advantage; you do not have to let go of the shifter after every shift. Taking your hand off, can be very hard for some drivers to learn especially for those who have a habit of holding the shifter almost constantly.
The 3 wire sensor can be supplied with any ecu voltage between 5V and 16V, so it will work on just about any ecu input circuit. When connected, the ecu will be able to read the exact shifter position and an experienced tuner will now be able to calibrate the exact positions where the ignition timing cut is engaged. For users who do not have experience creating tables and programming ecus to read signal inputs, we have developed a programmable interface unit that simplifies things quite a bit. The interface reads shifter position based on a 5V circuit, so only the 2 engagement points, activate and stop, need to be set. Using a single button on the unit, the user will be able to set the exact operating window of the shift cut signal. The output signal leaving the interface unit will essentially become the on/off switch for the ignition cut and can be set up as a positive or ground signal.
Applications:
- 02-06 DC5
- 01-05 Civic EM2
- 01-05 Civic ES1
- K-swapped Civic EF, EG, EK
- K-swapped Integra DA, DC2
Note:
SHIFT CUT SENSOR WIRING INSTRUCTIONS - 3 WIRES
Red Wire: OUTPUT to Interface or ecu. IF using our Pro Shift Cut Interface, connect this red wire to the white wire on the interface unit.
Yellow Wire: Connect to ground source.
Green Wire: Connect to an ecu +5V source. Make very sure this is connected to an ecu +5V Source. Connection to 12V will result in incorrect readings.
