K-Tuned Universal K-Swap Race Harness
Buy now pay later,no extra cost!
Payments from $69.11 with
We stepped into the wiring market for a reason. To release what we feel is the highest quality and easiest to install conversion harness available. We’ve used several of our competitor’s harnesses and in short, we felt the need to make several improvements based on the flaws we encountered. Just like every other K-Tuned product, they don’t leave our hands unless we feel that it is a top quality part that we would use on our own personal cars.

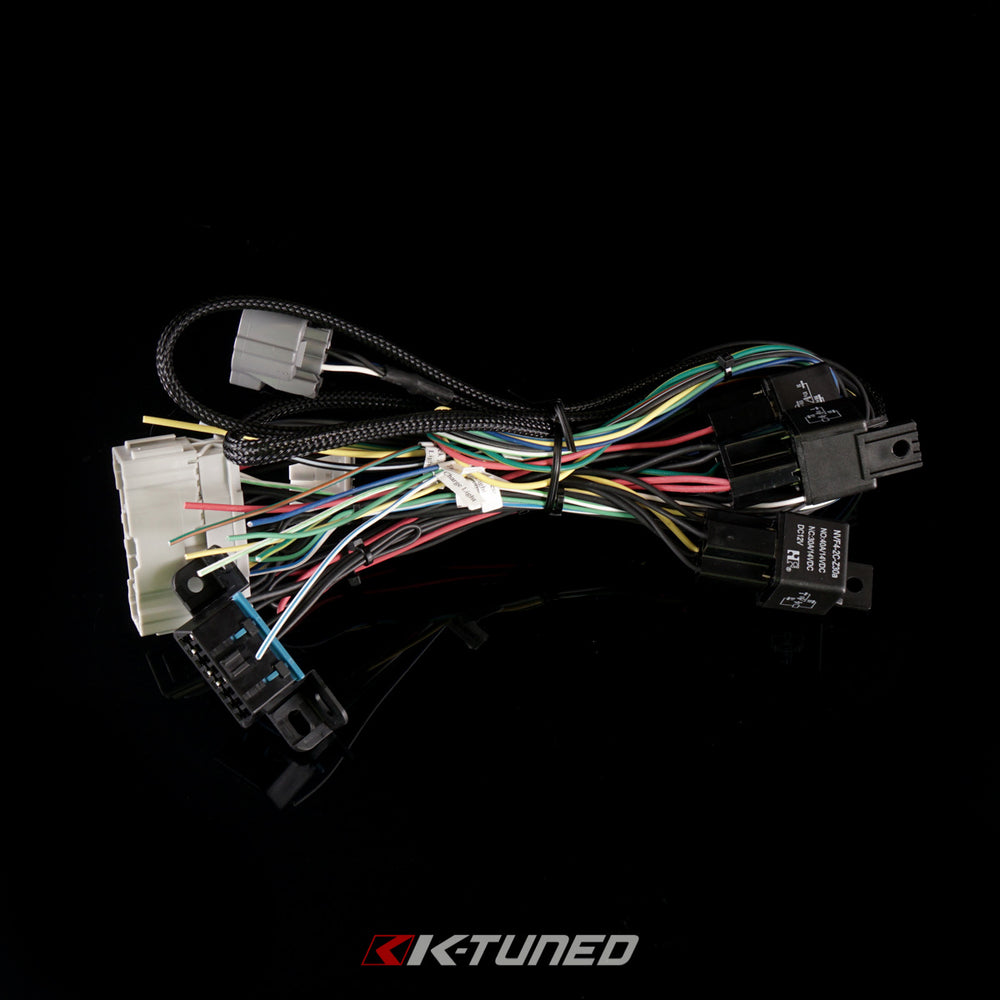

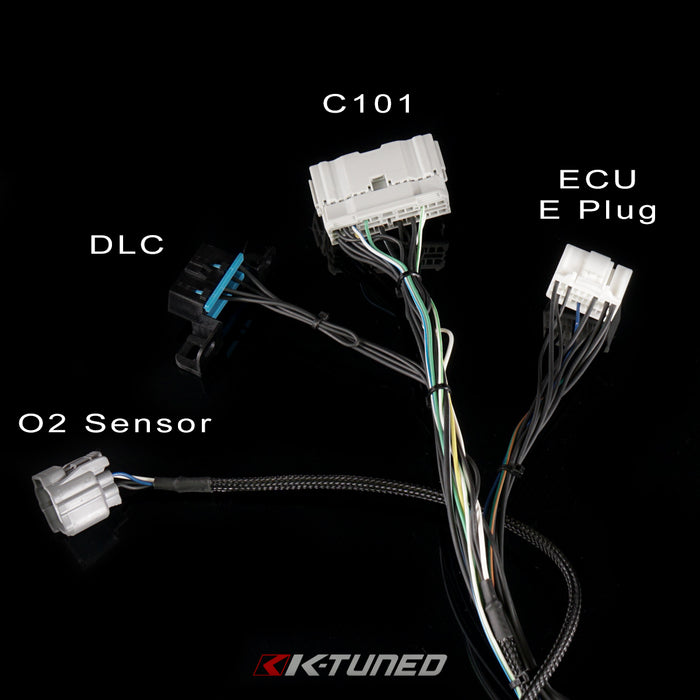

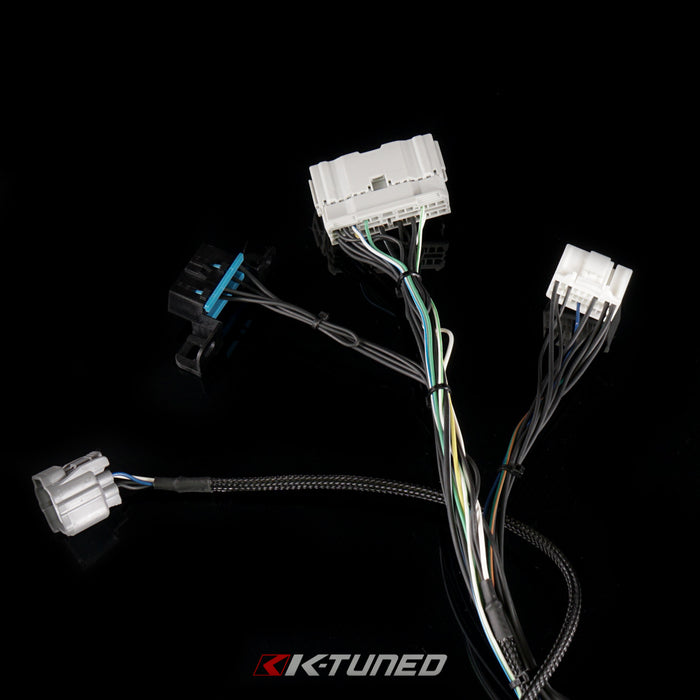

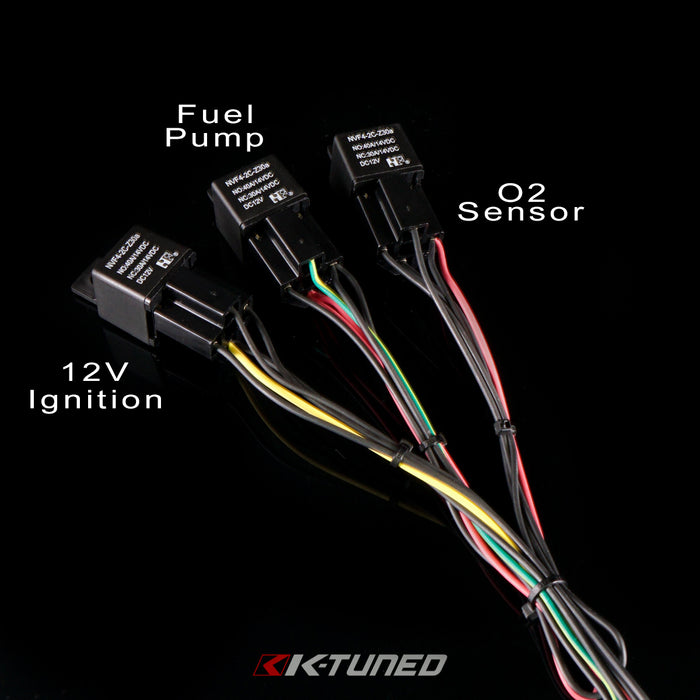

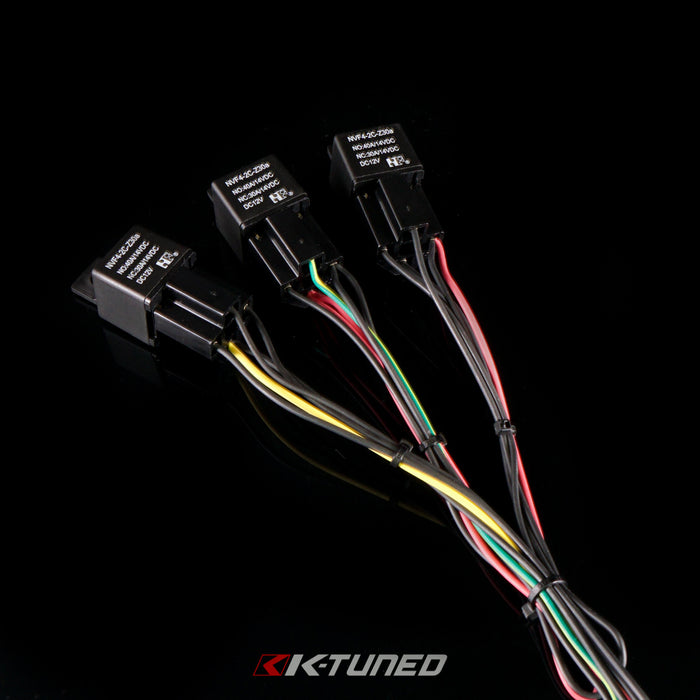

A K-swap conversion harness is a must-have part for any K-series engine swap. The harness is designed for custom applications. The harness includes plugs needed to connect to the engine harness, necessary relays, and labeled flying leads. This saves a lot of time sourcing plugs and figuring out wiring.

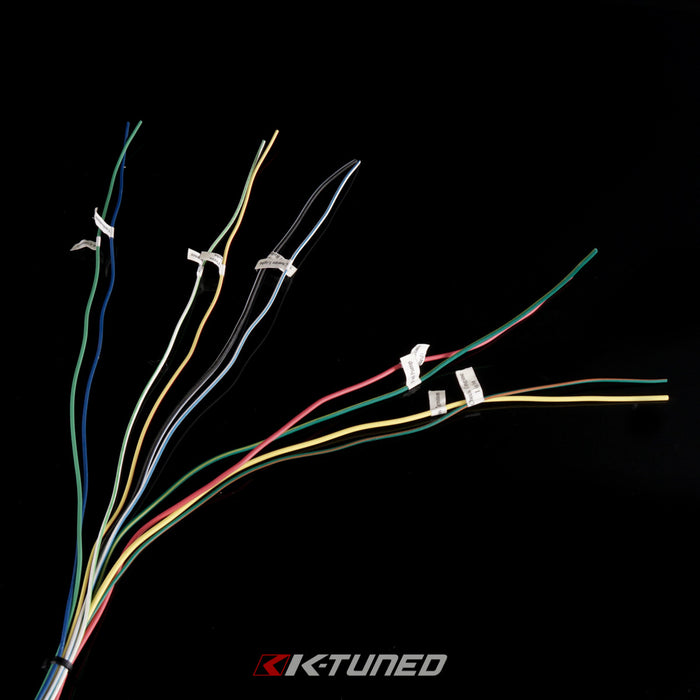

Loose wires
12V Constant Power (Fused) - Red
12V Ignition - Yellow
Starter Relay Signal - Black/White
Speedometer White/Green
Tachometer - Blue
Check Engine Light - Green/Brown
Charge Light - White/Blue
Oil Pressure Light - Yellow/Red
Fan Control - Green
Fuel Pump - Green/Yellow
Applications:
- Custom setups - Race Applications.
