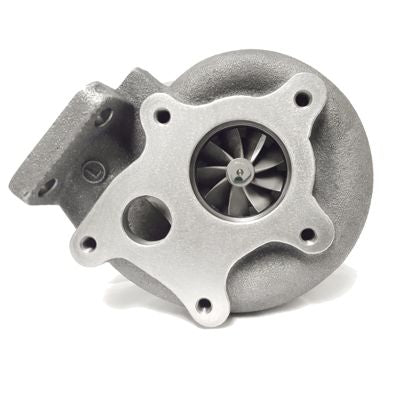

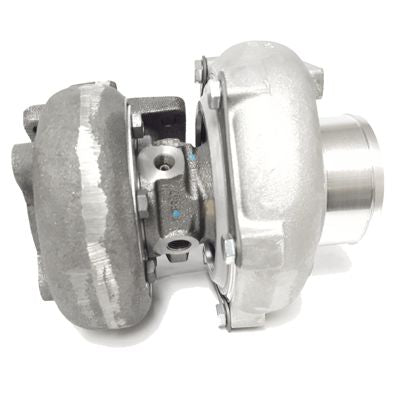

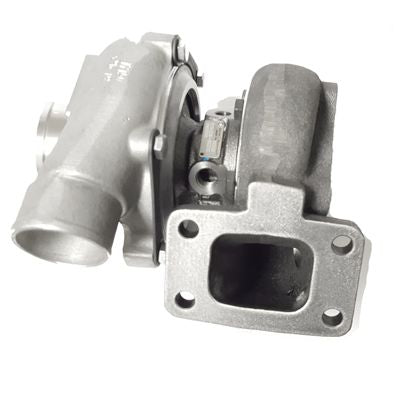

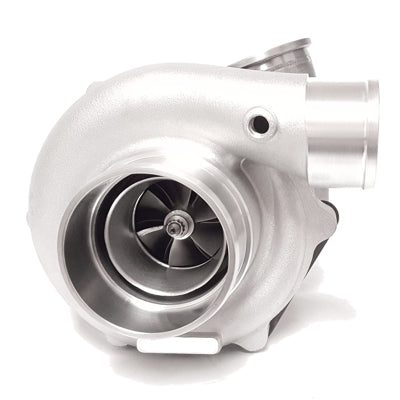

ATP Turbo Garrett GT28RS Anti-Surge, aka GT2860RS with .82 A/R T3 5 BOLT
by ATP Turbo
Save 10%
Original Price
$2,646.77 NZD
Current Price
$2,382.09 NZD
SKU GRT-TBO-F65
Buy now pay later,no extra cost!
Payments from $238.20 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GT28RS anti-surge (aka GT2860RS), .82 A/R with T3 5 bolt Ford style.
Dual Ball Bearing GT28RS turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 350HP.
Product Specifications:
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
Dual Ball Bearing GT28RS turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 350HP.
Product Specifications:

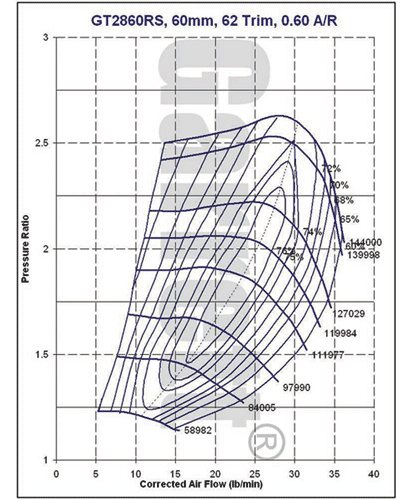

- Compressor Wheel Exducer: 60 mm
- Compressor Wheel Trim: 62
- Turbine Wheel Exducer: 53.85 mm
- Turbine Wheel Trim: 76 trim
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- T3 Inlet Weld Flange (stainless): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
- T3 5 Bolt (Ford Style) Discharge flange (stainless): Product Code: ATP-FLS-036 (ATP-FLS-035 - mild steel)
- Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated): Product Code: ATP-GSK-019
