Eagle Connecting Rod Set - D16

by Eagle
$875.84 NZD
SKU CRS5394H3D
Buy now pay later,no extra cost!

Payments from $87.58 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

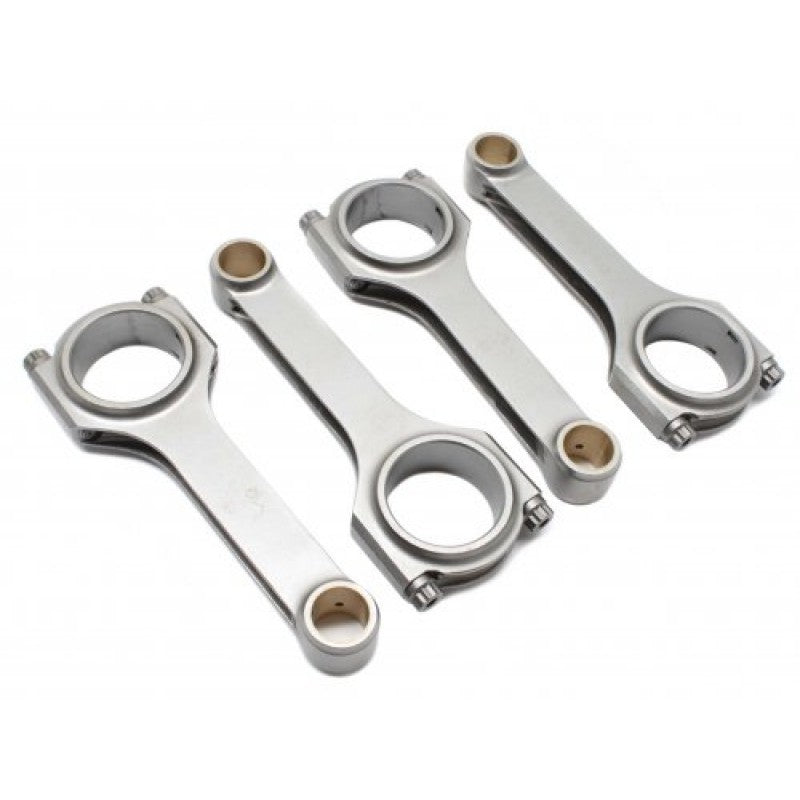

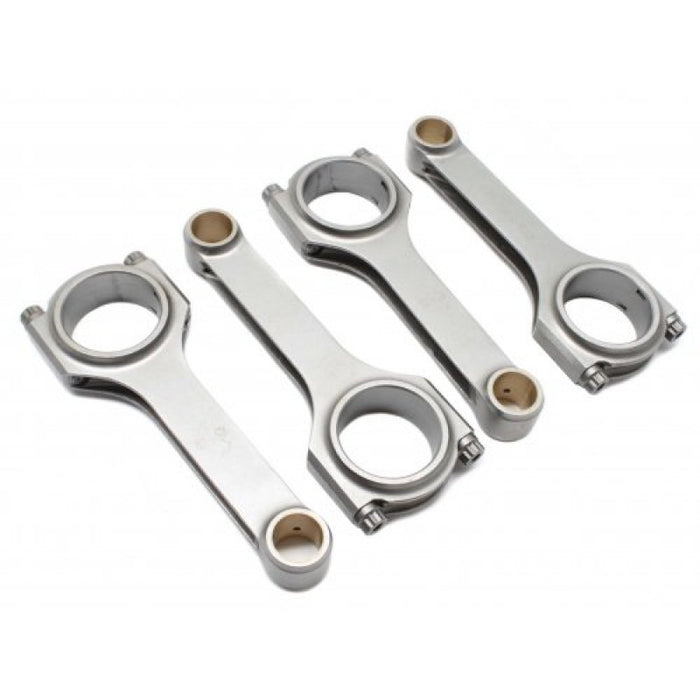

The Eagle ESP Import H-beam connecting rods are a 2-piece,forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with ARP 2000 rod bolts!

Specifications:

Advertised Horsepower Rating (hp) - 750 hp
Advertised RPM Rating - 7,500 rpm
Approximate Connecting Rod Weight (g) - 510
Big End Bore Diameter (in.) - 1.771
Cap Retention Style - Cap screw
Clearanced for Stroker - No
Connecting Rod Beam Style - H-beam
Connecting Rod Bolt Brand - ARP
Connecting Rod Bolt Head Style - 12-point
Connecting Rod Bolt Material - ARP2000 alloy
Connecting Rod Finish - Shot-peened
Connecting Rod Length Center to Center (in.) - 5.394
Connecting Rod Material - Forged 4340 steel
Fastener Yield Strength (psi) - 200,000
Magnafluxed - Yes
Pin End Bore Diameter (in.) - 0.748
Quantity - Sold as a set of 4
Remanufactured - No
Weight Matched Set - Yes
Wrist Pin Style - Floating
