ATP Turbo Turbocharger, GT3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator

$3,876.88 NZD
SKU GRT-TBO-J25
Buy now pay later,no extra cost!

Payments from $387.68 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

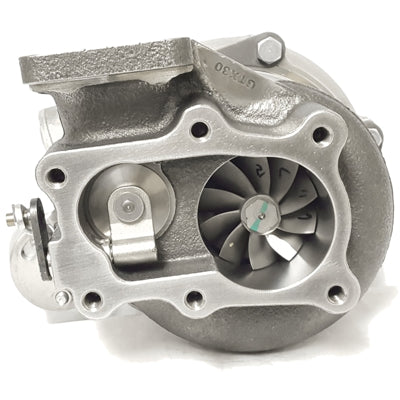

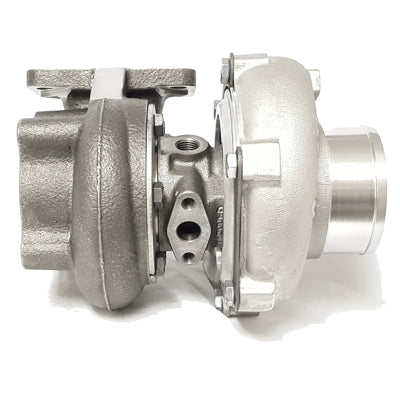

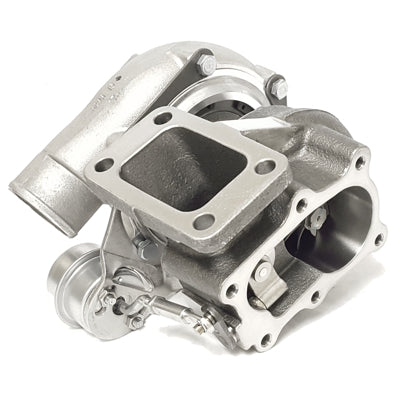

Garrett GT3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. 480+HP potential flow.

Product Features:

  • Genuine Garrett GT Aero compressor wheel
  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 53mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Compressor Housing A/R: 0.50
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

  • Coolant in/out: ATP-RB2-002
  • Oil feed: ATP-RB2-001
  • Oil drain flange: ATP-VSRT-014
  • Oil drain gasket: GRT-GSK-008

NOTE: Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.

Compressor & Turbine Maps:

Applicable Garrett Part Numbers:

  • 836028-5005S
