ATP Turbo Turbocharger, Falcon XR6/Barra, GEN2 GTX3584R DBB w/ 1.06 A/R T3 tbn hsg and 4" in comp inlet
by ATP Turbo
$5,971.90 NZD
SKU GRT-TBO-J59
Buy now pay later,no extra cost!
Payments from $597.19 with
Enjoy now. Pay Later. Interest free. Learn More

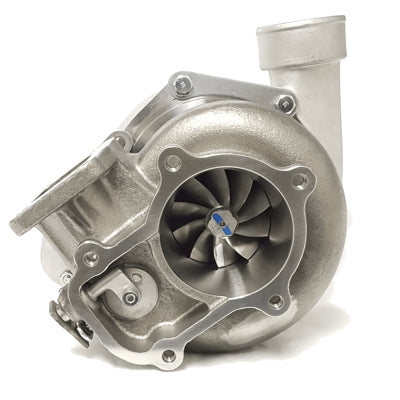

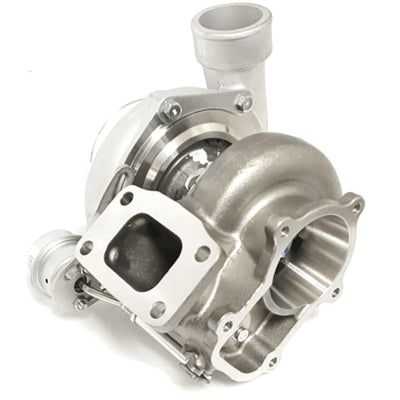

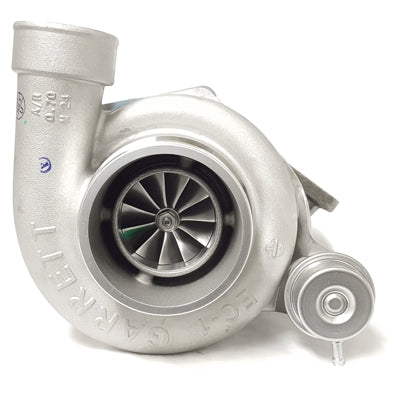

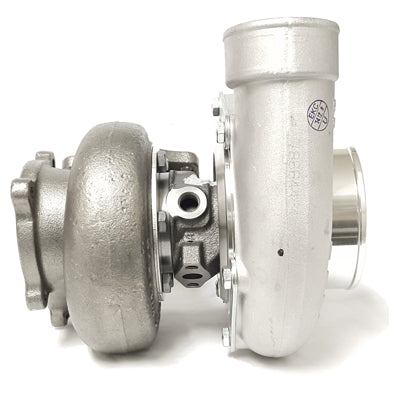

Garrett GEN2 GTX3584R dual ball bearing turbocharger for the Falcon XR6/Barra with 1.06 A/R T3 turbine housing and 4"in/2.5" out compressor (stock inlet is 3"). 1,000 HP potential flow.
Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
Ultra high flow "RS" blade profile turbine wheel
Dual ball bearing CHRA rotating assembly
Product Specifications:
- Compressor Wheel Inducer: 67 mm
- Compressor Wheel Exducer: 84 mm
- Compressor Wheel Trim: 64
- Turbine Wheel Inducer: 68 mm
- Turbine Wheel Exducer: 62 mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Flange, T3 Inlet (Stainless Steel): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 846098-5004S
