ATP Turbo Turbocharger, Falcon XR6/Barra, Garrett GEN2 GTX3582R DBB w/ 1.06 A/R T3 tbn hsg and 3" comp inlet
by ATP Turbo
$4,907.98 NZD
SKU GRT-TBO-J55
Buy now pay later,no extra cost!
Payments from $490.79 with
Enjoy now. Pay Later. Interest free. Learn More

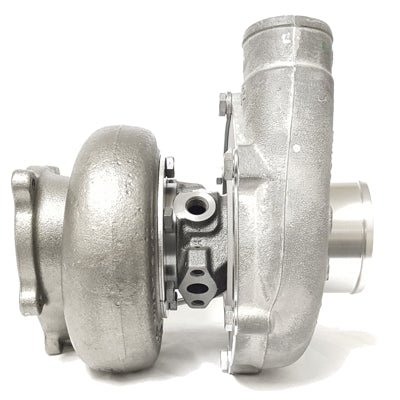

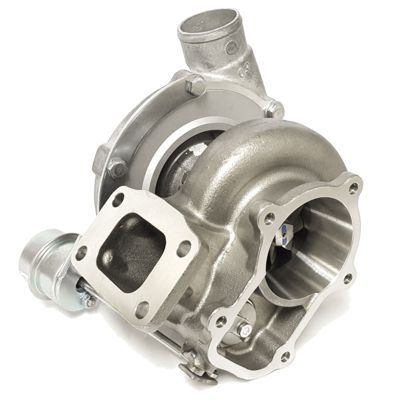

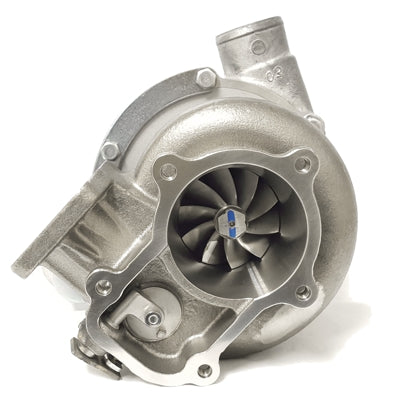

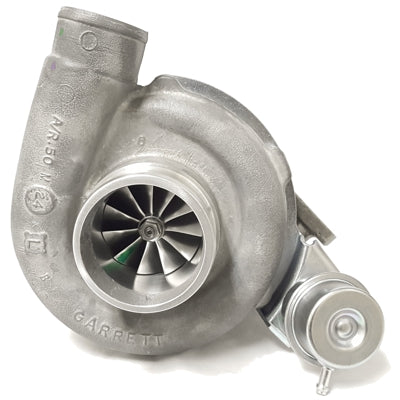

Garrett GEN2 GTX3582R dual ball bearing turbocharger for the Falcon XR6/Barra with 1.06 A/R T3 turbine housing and 3" compressor inlet (for stock inlet pipe size). Advanced GEN2 billet compressor wheel capable of 850HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 66mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 64
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Flange, T3 Inlet (Stainless Steel): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 851154-5004S
