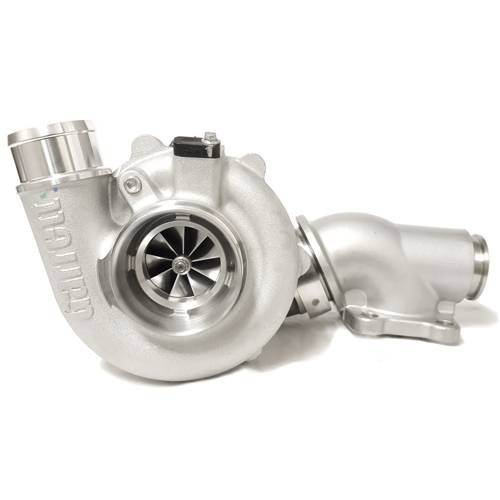

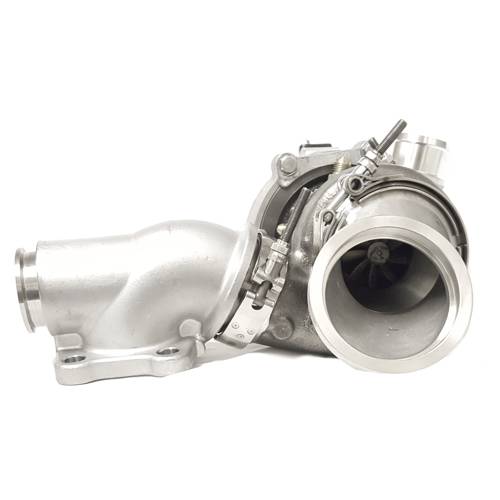

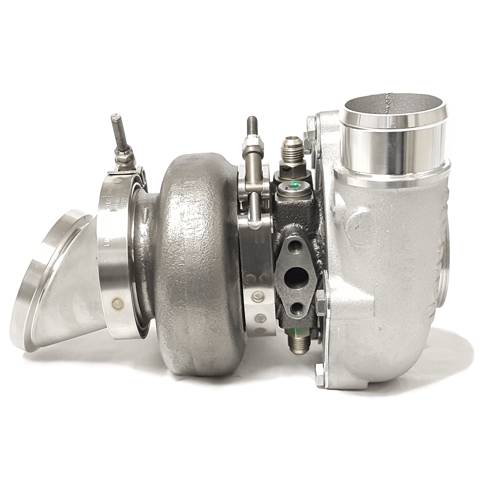

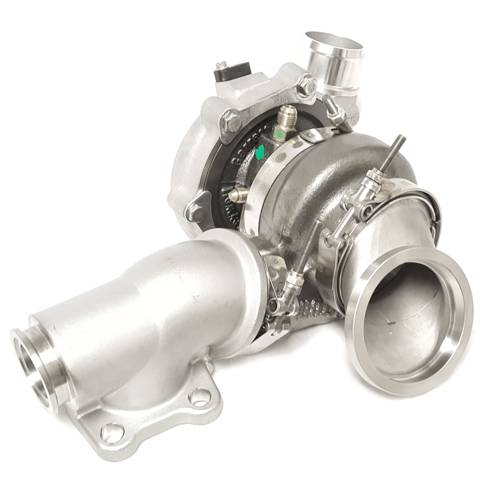

ATP Turbo Turbo Kit, Garrett G25-550, Focus ST 2.0L Ecoboost, Stock Location, Bolt On, .92 A/R, Ext. Wgt.
by ATP Turbo
$7,405.09 NZD
SKU ATP-FOC-091
Buy now pay later,no extra cost!
Payments from $740.50 with
Enjoy now. Pay Later. Interest free. Learn More
The Garrett G-Series G25-550 .92 A/R turbo kit for the Ford Focus ST 2.0L Ecoboost. Bolt on, stock location externally wastegated upgrade turbo solution. 550HP from a small frame package!
- Ultra High Flow G-Series Compressor Wheel
- Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
- Includes -4AN oil feed fitting and -6AN coolant/water fittings
- Stock Location, Direct Bolt-on
- Externally Wastegated
- Built-in external wastegate port (Tial MVS) for future expansion. Capoff provided
- V-band flanged turbo adapter (NOW Stainless Steel)
- Any stock turbo flanged downpipe will fit
- Any stock placement intake pipe will fit. Adapter elbow provided.
- Any stock placement charge pipe will fit
- New steel braided oil feed and coolant lines provided
- Fits stock oil drain tube
- MVS wastegate and dumptube sold separately
- Suggested starter dump tube, P/N ATP-MDP-048
- Compressor Wheel Inducer: 48mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
- +2013 Ford Focus ST
- +2013 Ford Fusion 2.0L Ecoboost
Compressor & Turbine Maps:
Garrett Part Number:
- 877895-5003S
