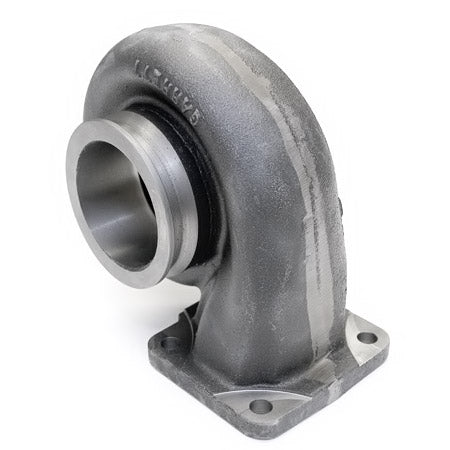

ATP Turbo Turbine Housing, GT4088R/ GT4094R/ GTX4088R, 3" V-BAND EXIT
ATP Turbo Turbine Housing, GT4088R/ GT4094R/ GTX4088R, 3" V-BAND EXIT

ATP Turbo Turbine Housing, GT4088R/ GT4094R/ GTX4088R, 3" V-BAND EXIT

by ATP Turbo
Save 10%
$1,051.94 NZD
$946.75 NZD
SKU ATP-HSG-007-106AR-BB
Buy now pay later,no extra cost!

Payments from $94.67 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

T4 Inlet and V-band Outlet

Machined T3 to V-band Inlet Option and V-band Outlet

Garrett cast turbine housing. Direct replacement on GT40R. Available T4 divided inlet, T3 undivided inlet, or machined T3 inlet to V-band.

COMPATIBLE TURBOCHARGER MODELS:
  • GT4088 Journal Bearing (T4 Inlet options only)
  • GT4088R, GTX4088R
  • GT4094R
  • GT3788R (Alternate fitment option - Additional $20.00)
TURBINE HOUSING A/R OPTIONS AND TURBINE WHEEL FITMENT OPTIONS:
  • T4 Divided Inlet and 3" V-band outlet in .85 A/R, .95 A/R, 1.06, or 1.19 A/R
  • T4 Divided Inlet and 6 Bolt outlet in 1.34 A/R (FOR JOURNAL BEARING GT4088 ONLY)
  • T3 undivided inlet and 3" V-band outlet in .89 A/R, .99 A/R or 1.11 A/R
  • V-band undivided inlet (machined from T3 Inlet) and 3" V-band outlet in .89 A/R, .99 A/R or 1.11 A/R

TURBINE HOUSING INSTALLATION COMPONENTS:

Turbine Housing
Options		 Inlet
Components		 Outlet
Components		 Turbine Housing to
CHRA Hardware
T4 Divided Inlet &
3" V-Band Outlet
(.85, .95, or 1.06 A/R)		 T4 Divided Flange: ATP-FLS-057

T4 Divided Gasket: ATP-GSK-014 		Stainless DOWNPIPE SIDE Flange and Clamp set for GT40R GTX4088R: CLC-CLA-274 ATP-FST-039
T3 Undivided Inlet &
3" V-Band Outlet
(.89, .99, or 1.11 A/R)		 T3 Inlet Flange: ATP-FLS-038

T3 Inlet Gasket: GRT-GSK-005 		Stainless DOWNPIPE SIDE Flange and Clamp set for GT40R GTX4088R: CLC-CLA-274 ATP-FST-039
V-Band Undivided Inlet (machined from T3) &
3" V-Band Outlet
(.89, .99, or 1.11 A/R)		 V-Band Inlet Flange: ATP-FLS-191

3.0in V-Band Clamp: CLC-CLA-047 		Stainless DOWNPIPE SIDE Flange and Clamp set for GT40R GTX4088R: CLC-CLA-274 ATP-FST-039

GARRETT PART NUMBERS:
  • 448375-0018 (OR 773628-0010) = .85a/r T4 T4 DIVIDED
  • 448375-0019 (OR 773628-0011) = .95a/r T4 DIVIDED
  • 448375-0020 (OR 773628-0012) = 1.06a/r T4 DIVIDED
  • 448375-0021 (OR 773628-0013) = 1.19a/r T4 DIVIDED
