ATP Turbo Supercore, Garrett, Gen2 GTX2867R, P/N: 849894-5002S
by ATP Turbo
Save 10%
Original Price
$3,569.02 NZD
Current Price
$3,212.12 NZD
SKU GRT-TBO-M42
Buy now pay later,no extra cost!
Payments from $321.21 with
Enjoy now. Pay Later. Interest free. Learn More

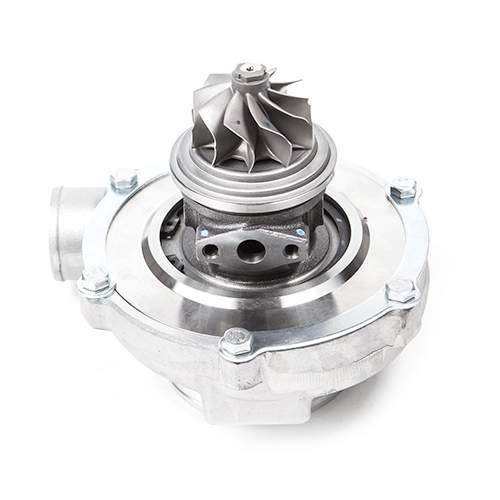

Garrett GEN2 GTX2867R dual ball bearing SuperCore (P/N: 849894-5002S ) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). Hose connection compressor housing. Advanced GEN2 billet compressor wheel capable of 550HP!
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 50mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 55
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
NOTE: Alternate coolant and oil fittings are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- Supercore P/N: 849894-5002S
