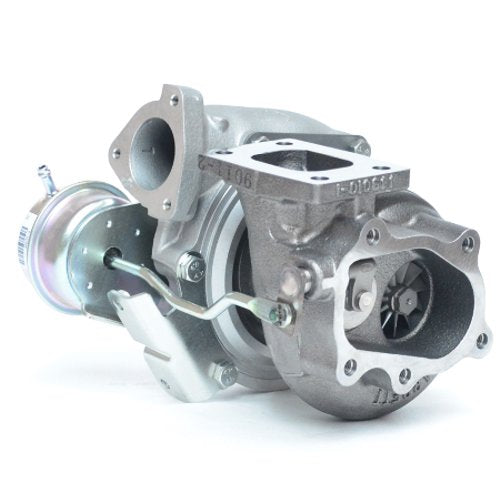

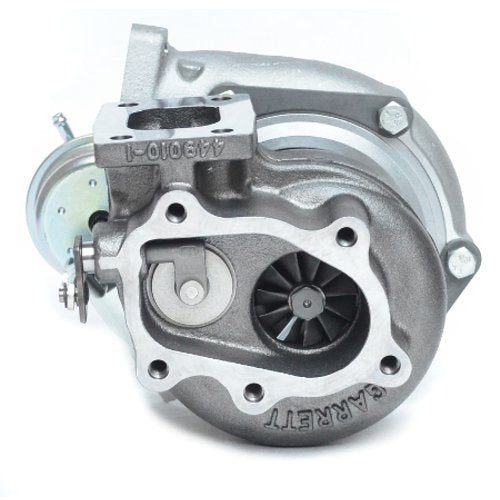

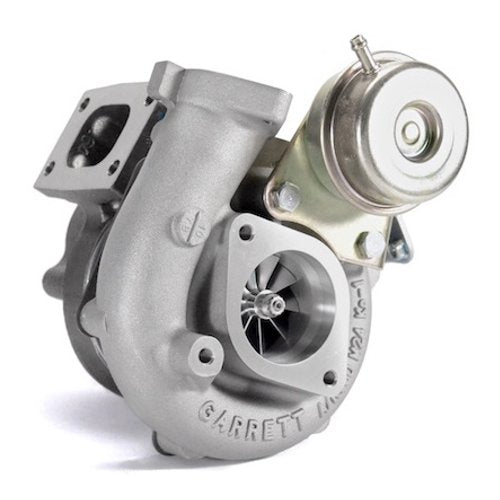

ATP Turbo SR20DET Drop-in GTX2863R Turbo With T25 Flanged .86 A/R turbine Housing
by ATP Turbo
$3,390.75 NZD
SKU GRT-TBO-M14
Buy now pay later,no extra cost!
Payments from $339.07 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2863R dual ball bearing direct drop-in turbo for the Nissan SR20DET with a .86 A/R T25 internal wastegate turbine housing. Quick spooling with ultra high flow compressor technology. 450 HP potential flow with excellent boost response.
Includes internally gated T25 flanged turbine housing and internal wastegate actuator (12 to 14PSI).
Product Specifications:
- Compressor Wheel Inducer: 47.1mm
- Compressor Wheel Exducer: 63.4mm
- Compressor Wheel Trim: 56
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Exducer: 47.0mm
- Turbine Wheel Trim: 76
Coolant (water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Inlet Flange, T25/GT25 Inlet Weld (stainless steel): Product Code: ATP-FLS-037 (mild steel - ATP-FLS-002 )
- Inlet Gasket, T25/GT25 Turbine Inlet: Product Code: GRT-GSK-004
- Outlet Flange, GT25R/GT28R/GT28RS/GT3071R-WG (stainless steel): Product Code: ATP-FLS-088 (mild steel - ATP-FLS-081)
- Outlet Gasket, 5-Bolt for Garrett T25 Flanged GT28/30R-WG Turbine Housings: Product Code: ATP-GSK-016
Compressor and Turbine Maps:
- 816365-5001S
- 836040-5003S
