ATP Turbo Oil Feed line assembly Hyundai Coupe 2.0T (2010 to 2012)
by ATP Turbo
$97.11 NZD
SKU ATP-HGC-006
Buy now pay later,no extra cost!
Payments from $9.71 with
Enjoy now. Pay Later. Interest free. Learn More

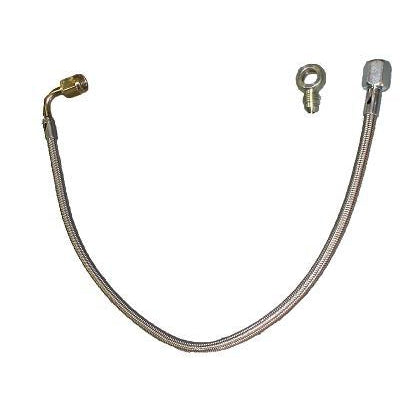

Oil Feed line assembly Hyundai Coupe 2.0T (2010 to 2012 model years) comes with banjo and -4 oil feed line. Uses the stock banjo bolt.
APPLICATION NOTES:
Compatible with Hyundai Genesis Coupe 2.0T, model years 2010 to 2012 only
Product code: ATP-FTG-044 is required at the oil feed port on the factory stock HGC turbo.
All three of these parts are listed below under "related parts" so you can add to your basket:
APPLICATION NOTES:
Compatible with Hyundai Genesis Coupe 2.0T, model years 2010 to 2012 only
- The banjo fitting goes into the engine side and connects to the reused factory banjo bolt at the engine.
- One end of the supplied steel braided oil feed line connects to -4 AN at that banjo.
- The other end of the oil feed line goes to the turbo. However, depending on the turbo model that you are using, you will have to convert the oil feed port on that turbo to a -4 AN male to accept the oil feed line.
- Example: Product code: ATP-OIL-021 is required at the oil feed port on any GT/GTX 28 through 35 turbo
Product code: ATP-FTG-044 is required at the oil feed port on the factory stock HGC turbo.
All three of these parts are listed below under "related parts" so you can add to your basket:
