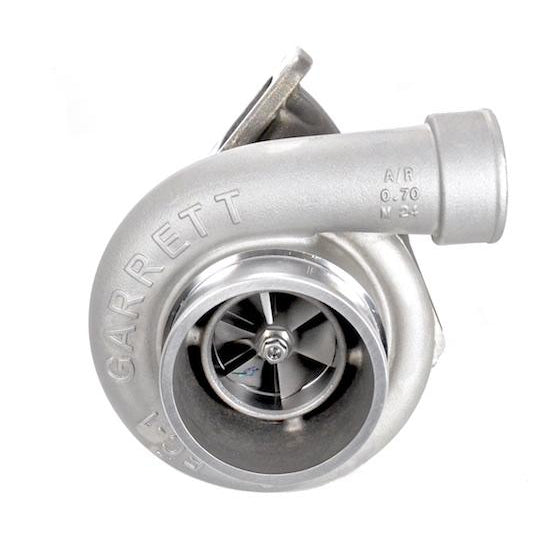

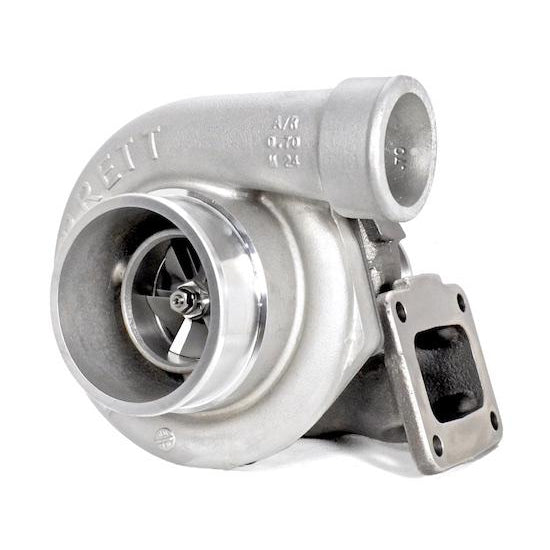

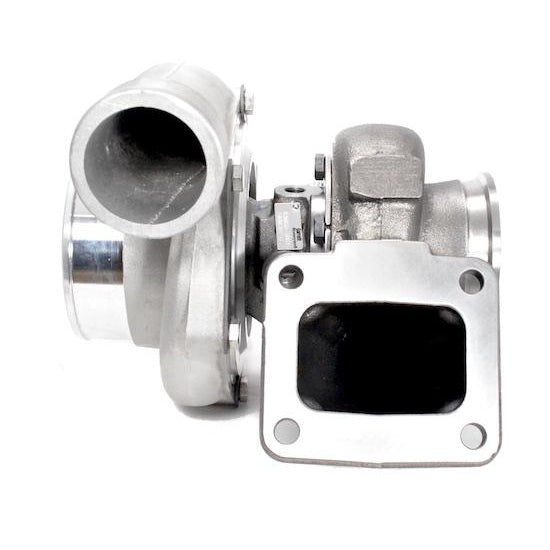

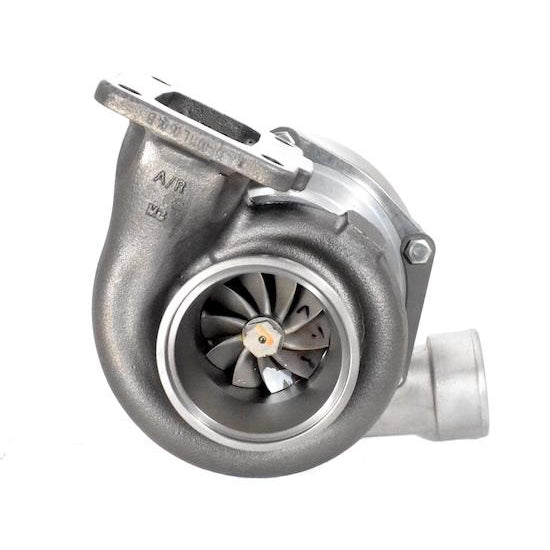

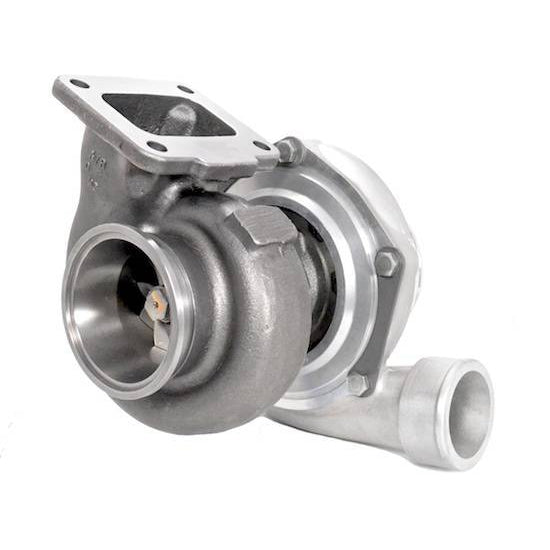

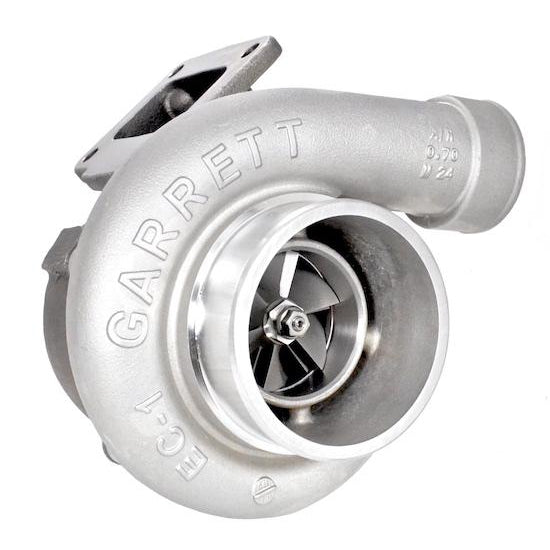

ATP Turbo GT3582R Turbo with T04S Frame 4" in / 2.5" out Anti-Surge, .82 A/R T4 Undivided 3" GT VB
by ATP Turbo
$3,588.18 NZD
SKU GRT-TBO-966
Buy now pay later,no extra cost!
Payments from $358.81 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett ball bearing GT3582R (aka "GT35R" or "GT35/GT40R") with a T04S .70 A/R compressor housing and a .82 A/R T4 undivided inlet and GT 3" V-Band Outlet Turbine Housing. Supports 650HP+ potential flow.
PRODUCT SPECIFICATIONS:
PRODUCT SPECIFICATIONS:
- Compressor Wheel Inducer: 61.4mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 56
- Compressor Housing: 0.70 A/R, T04S Frame 4" Inlet and 2.5" Outlet
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62.3mm
- Turbine Wheel Trim: 84
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T4 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-200
- T4 Inlet Gasket: Product Code:GRT-GSK-006
- GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Clamp: Product Code:CLC-CLA-048
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 714568-5010S
