ATP Turbo Gen2 GTX2860R DBB turbo w/ 14 psi act. .86 A/R T25 Flanged Garrett Int W/G Tbn Hsg
by ATP Turbo
$3,685.97 NZD
SKU GRT-TBO-F84
Buy now pay later,no extra cost!
Payments from $368.59 with
Enjoy now. Pay Later. Interest free. Learn More

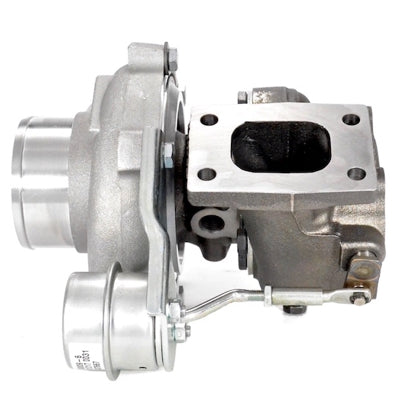

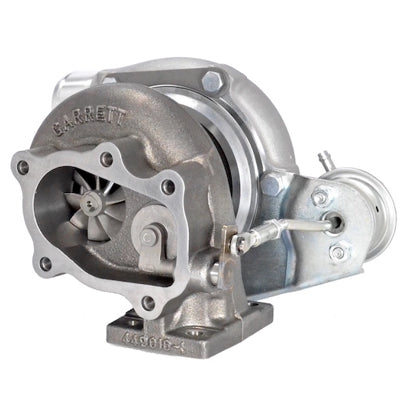

Garrett GEN2 GTX2860R dual ball bearing turbocharger with 14 psi actuator and .86 A/R T25 flanged Garrett internal wastegate turbine housing. Advanced GEN2 billet compressor wheel capable of 475HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 46mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
- Turbine Housing A/R: .86
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- T25 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-037
- T25 Inlet Gasket: Product Code:GRT-GSK-004
- 5 Bolt "GT28" Outlet Flange (for Downpipe): Product Code:ATP-FLS-088
- 5 Bolt "GT28" Outlet Gasket: Product Code:ATP-GSK-016
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 849894-5001S
- 856800-5003S
