ATP Turbo GEN2 - Garrett GTX3582R Turbo w/ DIVIDED 1.01 A/R T3 NiResist Turbine Housing w/3" GT Vband Exit
by ATP Turbo
$5,102.30 NZD
SKU GRT-TBO-851
Buy now pay later,no extra cost!
Payments from $510.23 with
Enjoy now. Pay Later. Interest free. Learn More

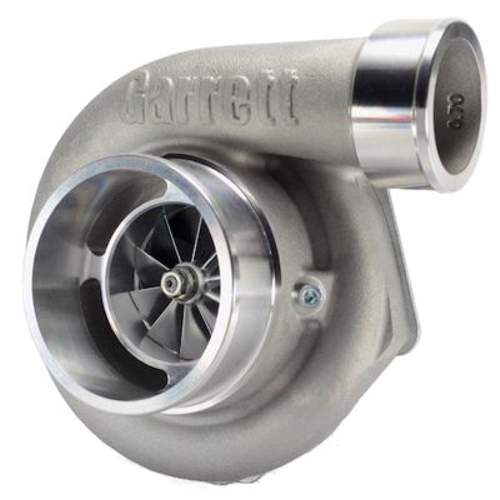

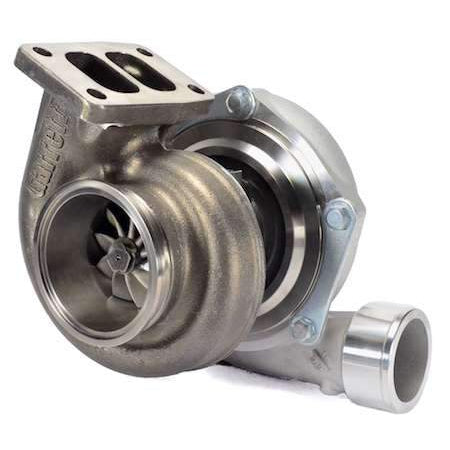

Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!
The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 66mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 64
- Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84

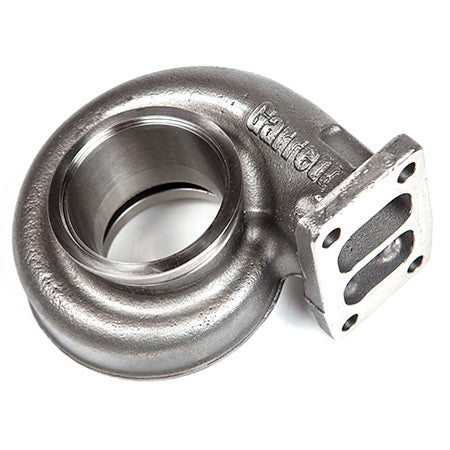

- Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
- T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-046
- T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
- T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
- T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
- TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.03 A/R
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- T3 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-068
- T3 Divided Inlet Gasket: Product Code:ATP-GSK-015
- V-Band "GT" 3 Inch Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 851154-5004S
- 856801-5079S
- 856801-5080S
- 856801-5081S
