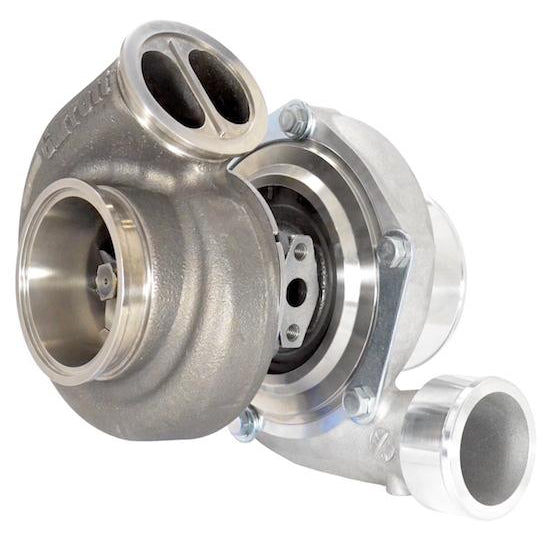

ATP Turbo GEN2 - Garrett GTX3076R Turbo with .83 A/R Garrett Twin-Scroll V-Band Turbine Housing
by ATP Turbo
$4,694.61 NZD
SKU GRT-TBO-K52
Buy now pay later,no extra cost!
Payments from $469.46 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX3076R dual ball bearing turbocharger with a T04E frame (4" inlet and 2" outlet compressor housing) and a .83 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 700HP!
The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:

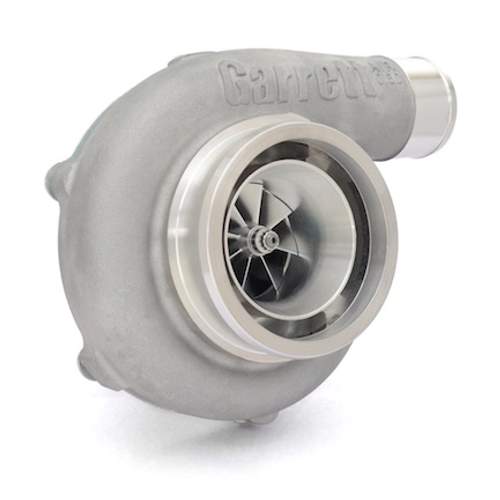

- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 58

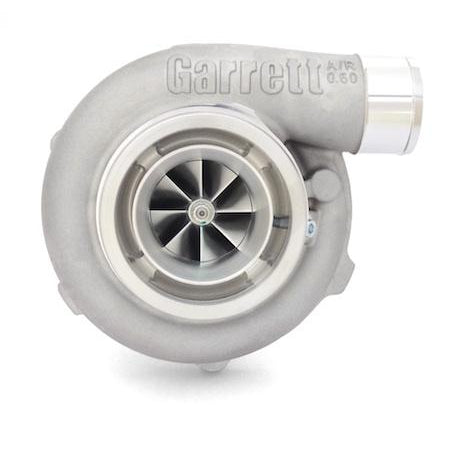

- Compressor Housing: T04E Frame (4" Inlet & 2" Outlet) . 60 A/R w/ Gen2 Anti-Surge Shroud
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- Turbine Housing: .83 A/R Divided (Twin-Scroll) Inlet & GT 3" V-Band Outlet
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008

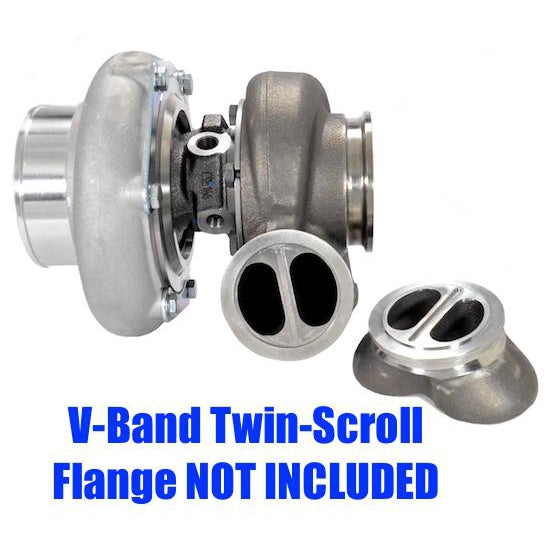

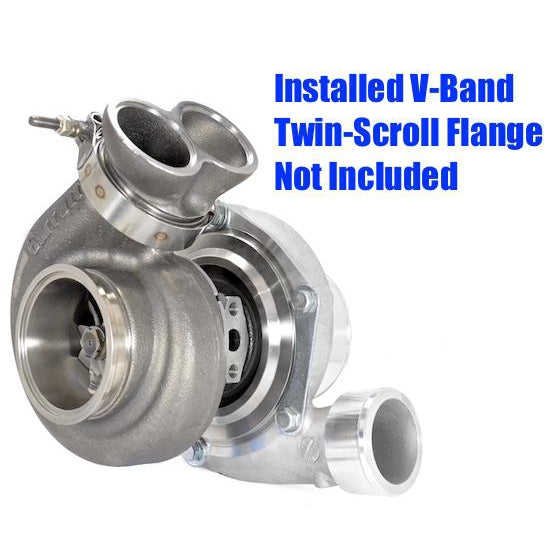

- Divided V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-HSG-250

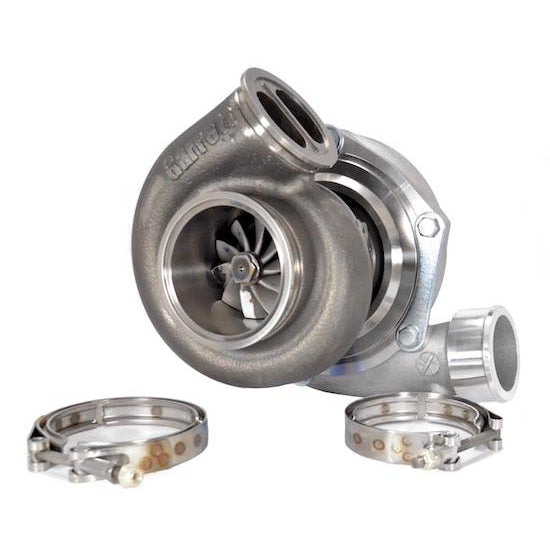

- V-Band Inlet Clamp: Product Code:CLC-CLA-047
- GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 851154-5001S
- 740902-0023
