ATP Turbo GEN2 - Garrett GTX3076R Turbo with .64 A/R T25 Internal W/G Turbine Hsg w/GT28 style 5 Bolt Exit, 4"
by ATP Turbo
$4,372.75 NZD
SKU GRT-TBO-889
Buy now pay later,no extra cost!
Payments from $437.27 with
Enjoy now. Pay Later. Interest free. Learn More

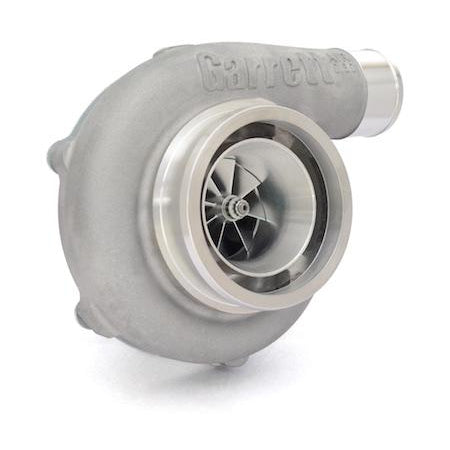

GEN2 - Garrett GTX3076R Turbo in the T04E Frame Comp Housing (4" ported shroud inlet) with .64 A/R T25 Internal W/G Turbine Housing w/ GT28 style 5 Bolt Exit (ATP-HSG-364). This Turbo retains the full size T04E Frame Gen2 GTX3076R Comp Housing. Wastegate actuator and bracket sold separately.
PRODUCT FEATURES:
Garrett GEN2 GTX3076R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 750HP!
The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
Garrett GEN2 GTX3076R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 750HP!
The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)
- T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)
TURBINE HOUSING OPTIONS:
- Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
ALTERNATIVE TURBINE HOUSING OPTIONS:

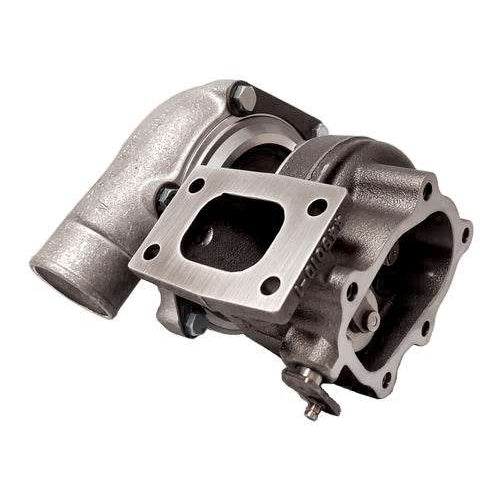

- T25 Inlet, Stainless Steel, Internally Gated, and 5 Bolt GT28 Outlet. Available in .64 A/R and .82 A/R
- T3 Inlet and 2.5" V-Band Outlet. Available in .63 or .82 A/R Product Code: ATP-HSG-041
- T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
- T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
- T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-045
- T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
- TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.06 A/R
Additional turbine housing options available in the Turbine Housing Section. Available here!
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T25 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-037
- T25 Inlet Gasket: Product Code:GRT-GSK-004
- 5 Bolt "GT28" Outlet Flange (for Downpipe): Product Code:ATP-FLS-088
- 5 Bolt "GT28" Outlet Gasket: Product Code:ATP-GSK-016
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 851154-5001S
- 856801-5037S
- 856801-5038S
- 856801-5039S
