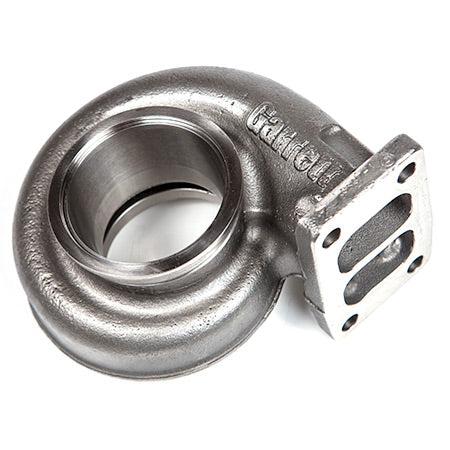

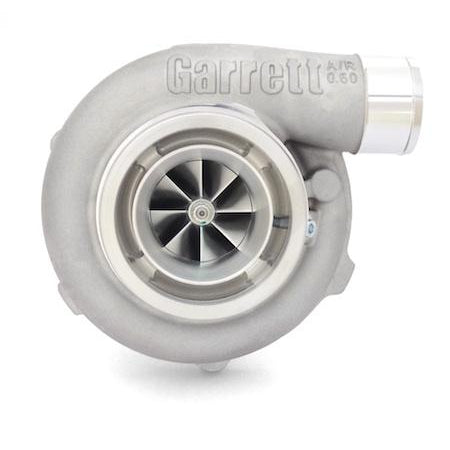

ATP Turbo GEN2 - Garrett GTX3076R Turbo w/ Divided 1.01 A/R T3 NiResist Turbine Housing w/3" GT Vband Exit
by ATP Turbo
$4,936.78 NZD
SKU GRT-TBO-805
Buy now pay later,no extra cost!
Payments from $493.67 with
Enjoy now. Pay Later. Interest free. Learn More
The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)
- T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)
- Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
- T25 Inlet, Stainless Steel, Internally Gated, and 5 Bolt GT28 Outlet. Available in .64 A/R and .82 A/R
- T3 Inlet and 2.5" V-Band Outlet. Available in .63 or .82 A/R Product Code: ATP-HSG-041
- T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
- T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
- T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-045
- T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
- TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.06 A/R
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T3 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-068
- T3 Divided Inlet Gasket: Product Code:ATP-GSK-015
- V-Band "GT" 3 Inch Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 851154-5001S
- 856801-5037S
- 856801-5038S
- 856801-5039S
