ATP Turbo GEN2 - Garrett GTX3071R Turbo w/ Divided 1.01 A/R T3 NiResist Turbine Housing w/3" GT Vband Exit
by ATP Turbo
$4,441.29 NZD
SKU GRT-TBO-780
Buy now pay later,no extra cost!
Payments from $444.12 with
Enjoy now. Pay Later. Interest free. Learn More

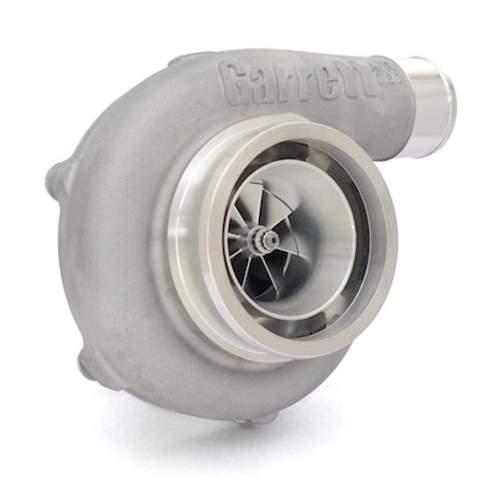

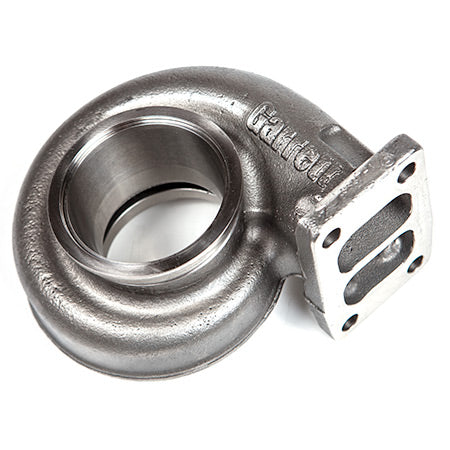

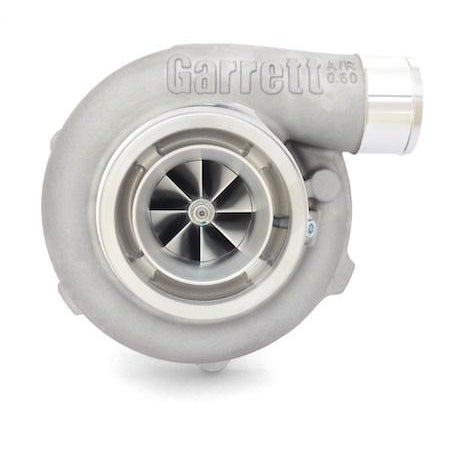

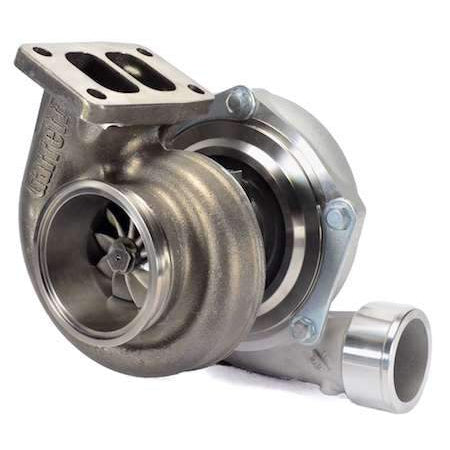

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including Ni-Resist T3 Divided (Twin-scroll) Inlet, 3 Inch "GT" V-Band Conical Outlet (81mm centering ring), 1.01 A/R Turbine Housing (ATP-HSG-211). Advanced GEN2 billet compressor wheel capable of 650HP!
PRODUCT FEATURES:
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T3 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-068
- T3 Divided Inlet Gasket: Product Code:ATP-GSK-015
- V-Band "GT" 3 Inch Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 851154-5002S
