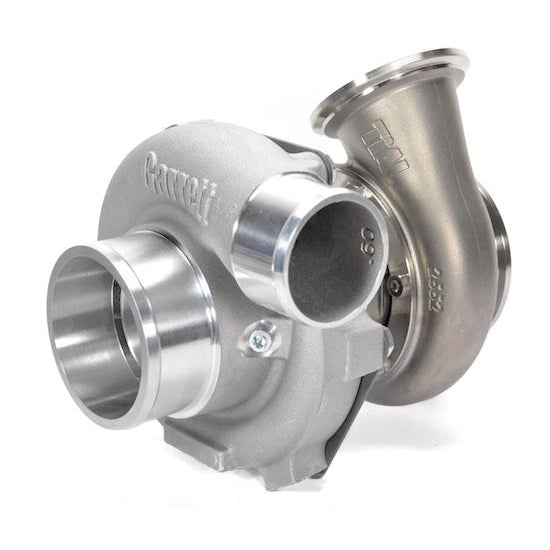

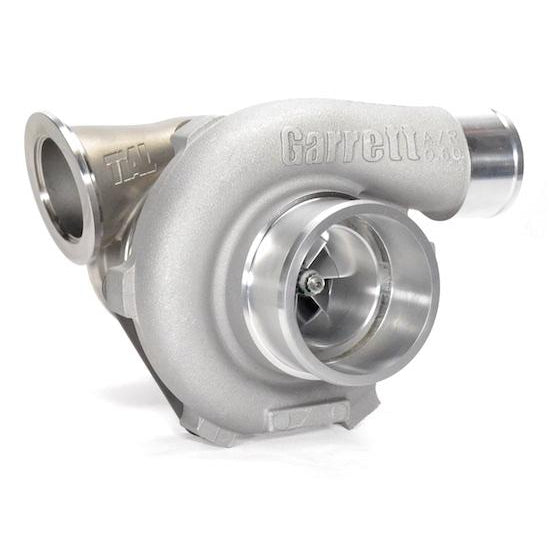

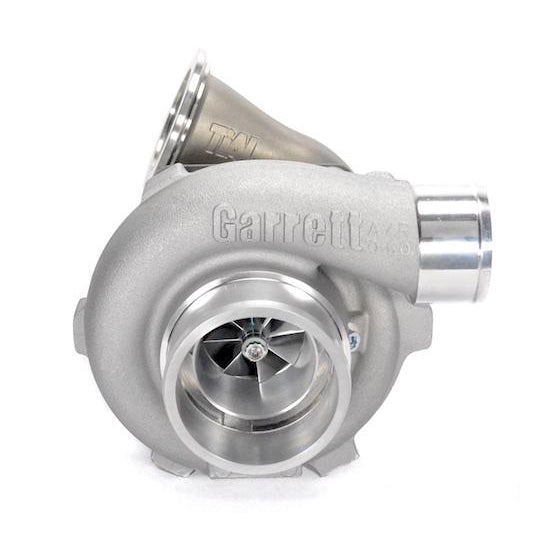

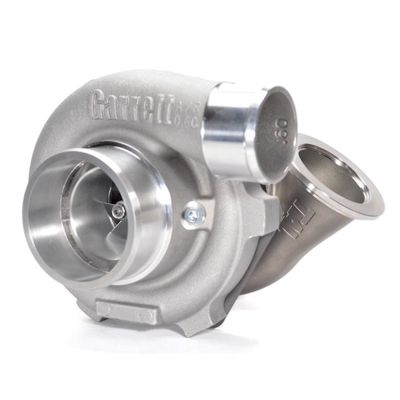

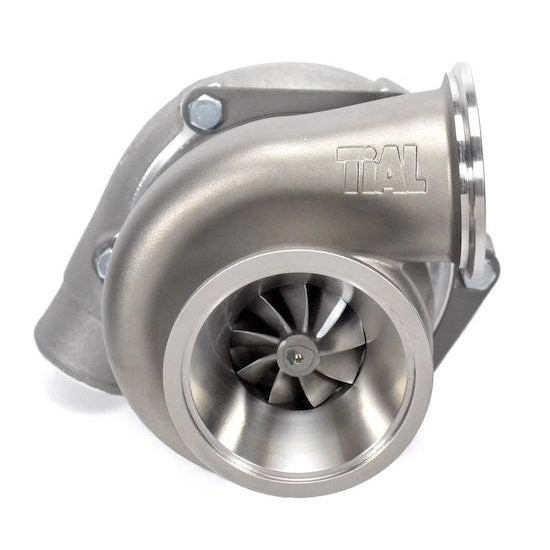

ATP Turbo GEN2 - Garrett GTX2860R Turbo with .86 A/R Stainless Tial V-band Turbine Housing
by ATP Turbo
Save 10%
Original Price
$3,891.77 NZD
Current Price
$3,502.59 NZD
SKU GRT-TBO-751-FCH
Buy now pay later,no extra cost!
Payments from $350.25 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX2860R dual ball bearing turbocharger, including a TiAL Stainless Steel .86 A/R, V-Band Inlet and V-Band Outlet Turbine Housing. Advanced GEN2 billet compressor wheel capable of 475HP!
PRODUCT FEATURES:
849894-5001S
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 46mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
- Turbine Housing A/R: .86
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-094
- V-Band Outlet Clamp: Product Code:CLC-CLA-026
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
