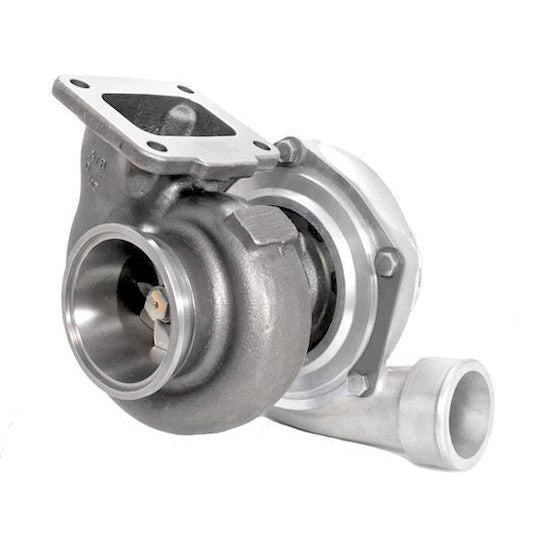

ATP Turbo Garrett GTX3584RS (with T4 Turbine Housing)
by ATP Turbo
$5,478.81 NZD
SKU GRT-TBO-595-106AR-CS
Buy now pay later,no extra cost!
Payments from $547.88 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T4 Inlet, and 3" GT V-band outlet turbine housing (.63, .82 or 1.06) A/R.
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compact package capable of 1,000HP
Hose Bead Outlet Compressor Housing.
Product Specifications:
- Compressor Wheel Inducer: 67mm
- Compressor Wheel Exducer: 84mm
- Compressor Wheel Trim: 64
- Compressor Housing A/R: 0.72
- Compressor Housing Inlet: 4 inch diameter
- Compressor Housing Outlet: 2.5 inch diameter
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
Turbine Housing Specifications:
- T4 Inlet
- 3 Inch GT V-Band Outlet (81mm centering ring)
- .63, .82 or 1.06 A/R
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T4 Inlet Gasket (Product Code: ATP GSK-006)
- T4 Inlet Flange (Product Code: ATP FLS-200)
- 3 Inch V-Band Clamp and 3 inch GT V-Band Flange (81mm centering ring) (Product Code: CLC-CLA-024)
NOTE: Alternate coolant and oil fittings and flanges are available.
Appliction Notes:
The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 846098-5001S
