ATP Turbo Garrett GTX2871R, SR20DET Drop-In Turbo Upgrade
by ATP Turbo
$3,738.94 NZD
SKU GRT-TBO-505-64AR
Buy now pay later,no extra cost!
Payments from $373.89 with
Enjoy now. Pay Later. Interest free. Learn More

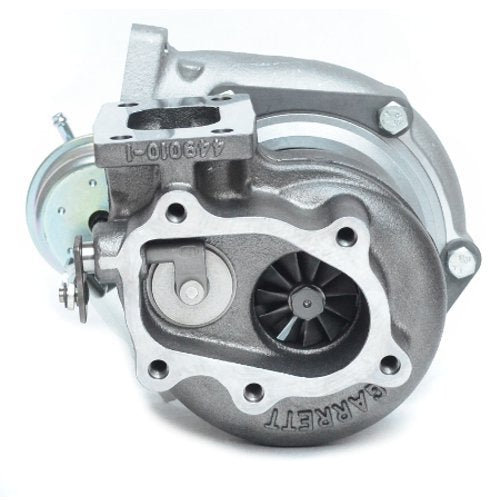

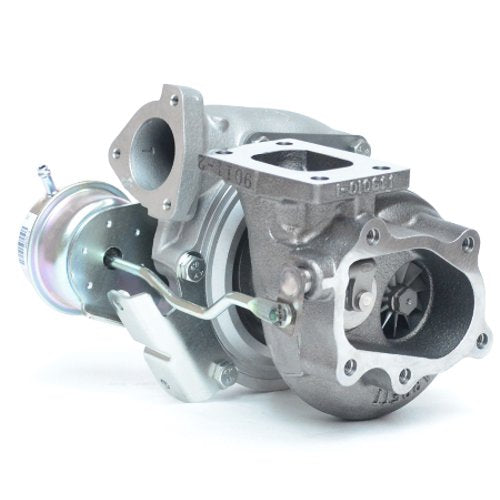

New GTX2871R dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.
Includes internally gated T25 flanged turbine housing (available in either .64 A/R or .86 A/R) and internal wastegate actuator (12 to 14PSI).
The GTX2871R features an ultra high flow compressor wheel and Garrett 11-Blade technology. 560HP potential flow.
PRODUCT SPECIFICATIONS:
- Compressor Wheel Inducer: 54.1mm
- Compressor Wheel Exducer: 71.4mm
- Compressor Wheel Trim: 58
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Exducer: 47.0mm
- Turbine Wheel Trim: 76
- Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
- Internal Wastegate Actuator (12 to 14PSI)
TURBINE HOUSING OPTIONS:
- T25 Inlet, 5 Bolt Outlet, and internally gated (Available in .64 or .86 A/R)
- Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers
- 836012-5005S
- 836012-5
- 836040-5
