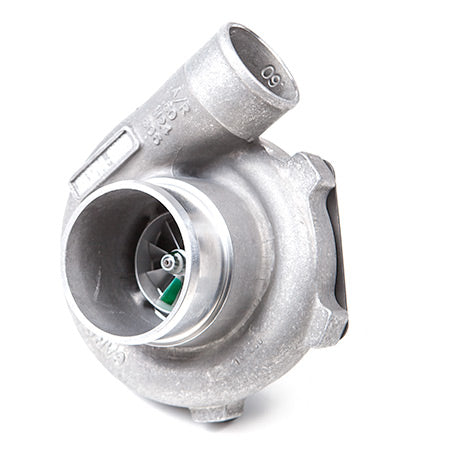

ATP Turbo Garrett GTX2867R 475HP Dual Ball Bearing Turbo - less turbine housing
Buy now pay later,no extra cost!
Payments from $323.54 with
New GTX2867R dual ball bearing turbo with ultra high flow compressor wheel featuring Garrett 10-Blade technology . Turbine Housing is sold separately and is the same as one used on GT2871R using 53.86mm 76 trim turbine wheel. .
GTX turbos use same turbine housing as GT turbos and turbine housings are sold separately. The external dimensions of this turbo is the same as a base GT2871R so no changes in the engine bay is required in order to fit this turbo in its place. This GTX model as uses all the same oil and coolant fittings at the standard GT28/GT30R/GT35R turbo.
Compressor housing is GT28 style with 3" inlet and 2" outlet but has built in anti-surge machining.
Actuator and bracket sold separately
Compressor Map
Applicable Garrett P/N's:
- 816366-5001S
- 816366-1
- 446179-0094
