ATP Turbo Garrett GT2871R 52 Trim Turbo with GT28R Style Compressor Hsg W/ High Pressure Adjustable Actuator
by ATP Turbo
$2,994.57 NZD
SKU GRT-TBO-067-64AR
Buy now pay later,no extra cost!
Payments from $299.45 with
Enjoy now. Pay Later. Interest free. Learn More

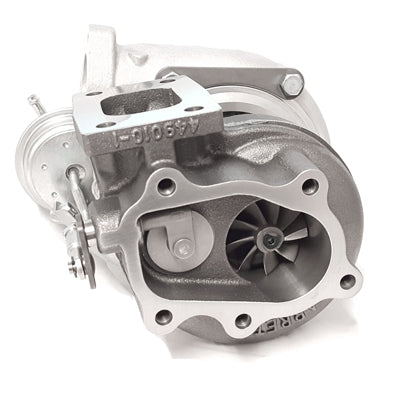

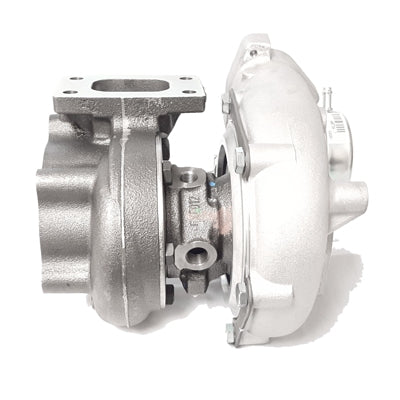

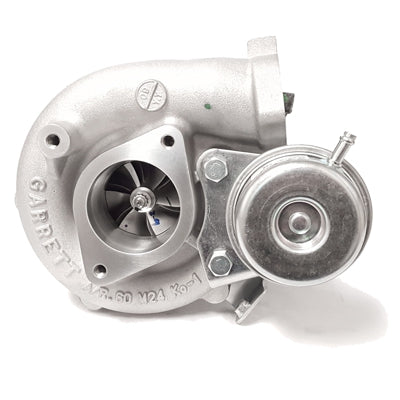

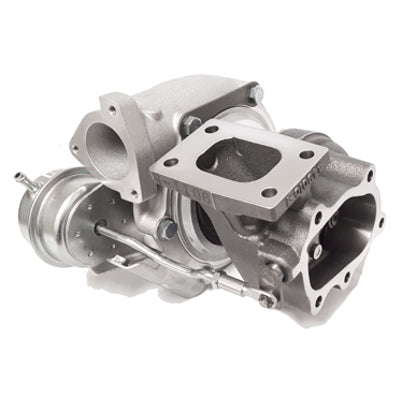

Dual Ball Bearing GT2871R turbo (base Garrett P/N 771847-5001S) assembly with T25 style turbine inlet. Comes with internally wastegated style T25 style turbine housing and GT28R style compressor housing.
Includes a wastegate actuator bracket and actuator from the factory.
This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 400HP. The external packaging of this turbo can be identical to that of the GT28R (if GT28R style actuator is chosen) and can be a nice stealty upgrade to step up to 400HP of flow without much re-arrangement. GT28RS style actuator is available for kit applications where the end housings are similar, but the wastegate position is unique and the actuator mounting position requires more flexibility with regard to compressor housing rotation (clocking position).
Turbine
-Wheel: 53.85mm w/ 76 trim
-Housing: .86 or .64 ar
Compressor
-Wheel: 71mm w/ 52 trim
-Housing: .60 ar (2 bolt inlet and 3 bolt outlet)
Application Notes:
-Nissan SR20DET compatible with GT28R style wastegate actuator
This unit is usually in stock and ships within 1-2 days.
Applicable Garrett P/N's:
Includes a wastegate actuator bracket and actuator from the factory.
This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 400HP. The external packaging of this turbo can be identical to that of the GT28R (if GT28R style actuator is chosen) and can be a nice stealty upgrade to step up to 400HP of flow without much re-arrangement. GT28RS style actuator is available for kit applications where the end housings are similar, but the wastegate position is unique and the actuator mounting position requires more flexibility with regard to compressor housing rotation (clocking position).
Turbine
-Wheel: 53.85mm w/ 76 trim
-Housing: .86 or .64 ar
Compressor
-Wheel: 71mm w/ 52 trim
-Housing: .60 ar (2 bolt inlet and 3 bolt outlet)
Application Notes:
-Nissan SR20DET compatible with GT28R style wastegate actuator
This unit is usually in stock and ships within 1-2 days.
Applicable Garrett P/N's:
- 771847-5001S
- 771847-0001
- 771847-1
