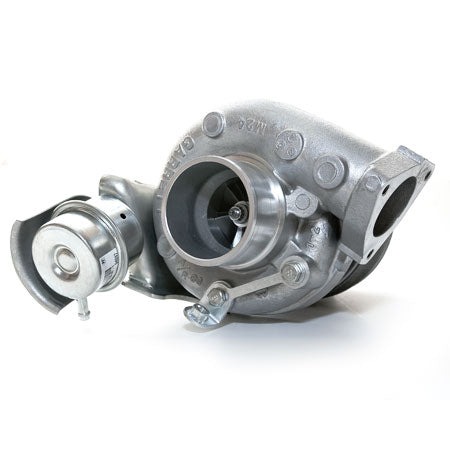

ATP Turbo Garrett GT2554R (aka GT25R) Ball Bearing Turbo
by ATP Turbo
$2,427.19 NZD
SKU GRT-TBO-001-BO-PCH
Buy now pay later,no extra cost!
Payments from $242.71 with
Enjoy now. Pay Later. Interest free. Learn More
Dual Ball Bearing Garrett GT2554R (aka GT25R) Turbo. Excellent responding turbo for 4 cylinder applications. The Garrett GT2554R has a flow capacity of approximately 240HP.
Available with internally gated or externally gated turbine housing options. Internal Wastegate Actuator & bracket ONLY included with internally gated turbine housing options.
NOTE: Internal wastegate is NOT included with externally gated v-band inlet and v-band outlet turbine housing OR T3 Inlet, 5 Bolt (Ford Style) Outlet in .48 A/R turbine housing.
Upgrade to GT2854R for additional $100.00.
COMPRESSOR INFORMATION:
- Compressor Wheel: 54.3mm w/ 60 trim
- Compressor Housing: .80 A/R
- Turbine Wheel: 53mm w/ 62 trim
- T25 Inlet, 5 bolt GT outlet, internally gated, .64 A/R and includes internal wastegate actuator (DEFAULT OPTION)
- V-band inlet (machined from T25 flange), 5 bolt GT outlet, internally gated, .64 A/R and includes internal wastegate actuator (Additional +$50.00)
- V-band inlet, V-band outlet, externally gated, .64 A/R and NO internal wastegate actuator
- T3 Inlet; 5 bolt (Ford style) outlet, .48 A/R, and configured as internal or external wastegate. NO internal wastegate actuator and bracket.
- 471171-5003S
- 471171-0003
- 471171-3
- 471171-5009S (GT2854R)
- 471171-0009 (GT2854R)
- 471171-9 (GT2854R)
