ATP Turbo Black, Gen 2 GTX3076R DBB Turbo w/ 1.06 A/R T3 TBN Hsg "GT V-Band 3" Conical Exit with 81mm Lip
by ATP Turbo
Save 10%
Original Price
$5,327.38 NZD
Current Price
$4,794.64 NZD
SKU GRT-TBO-J71
Buy now pay later,no extra cost!
Payments from $479.46 with
Enjoy now. Pay Later. Interest free. Learn More

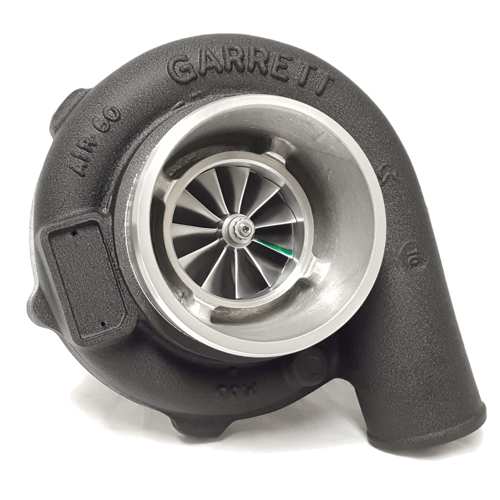

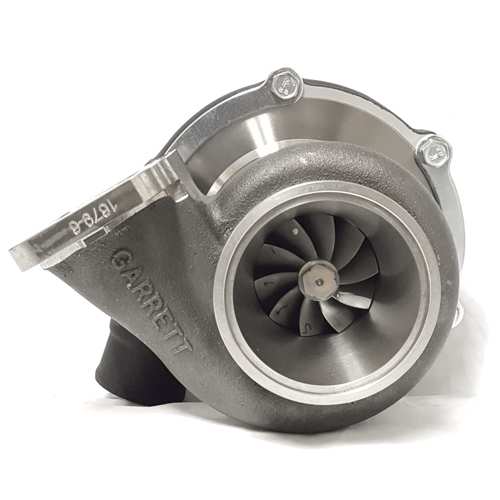

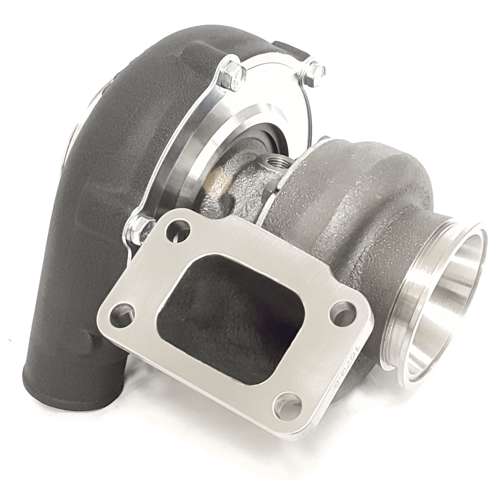

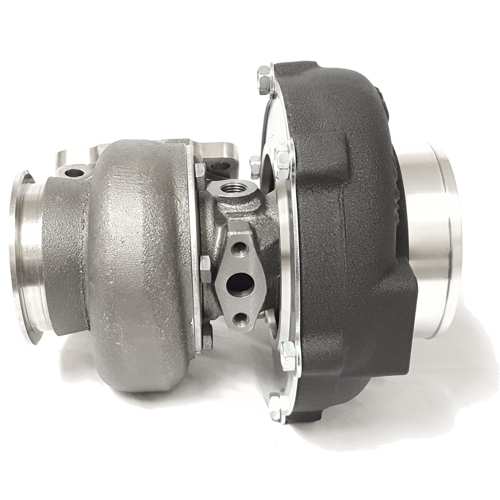

Black Garret Gen II GTX3076R dual ball bearing turbo with a 1.06 A/R T3 "GT Vband 3" conical exit (81mm lip) turbine housing. Advanced GEN II billet compressor wheel capable of 750HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN II compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
- T3 Inlet Gasket: Product Code:GRT-GSK-005
- V-Band "GT" 3 Inch Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett P/N's:
- 851154-5001S
