Wagner Tuning Comp. Intercooler Kit Ford Fiesta St MK8
Buy now pay later,no extra cost!
Payments from $145.83 with

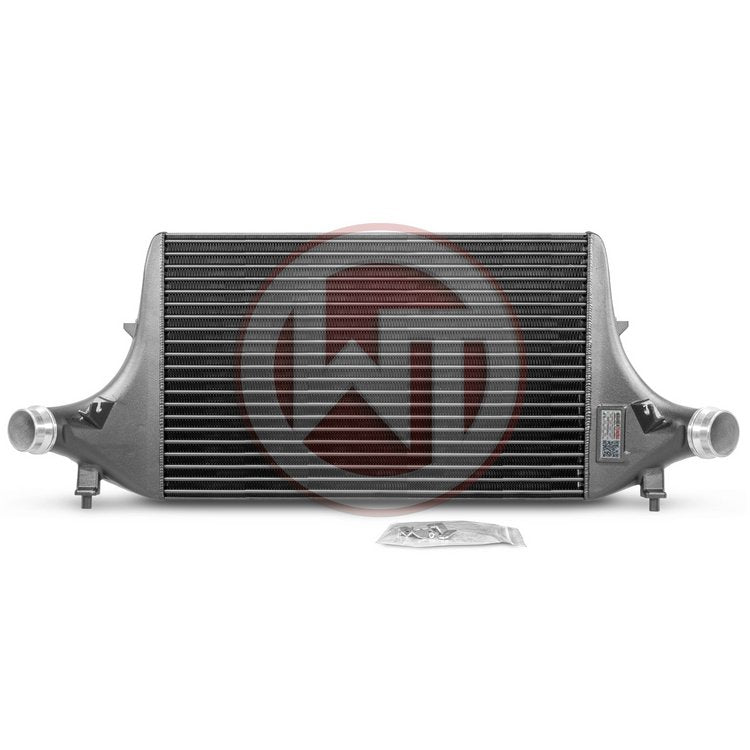

COMPETITION INTERCOOLER KIT for Ford Fiesta ST MK8
The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 620 mm x 390 mm x 56 mm / 24,4 Inch x 15,3 Inch x 2,2 Inch, which was developed especially for the requirements of the Ford Fiesta ST. This high-performance core offers an 150 % larger frontal surface and 86 % more core volume compared to the stock intercooler.
The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

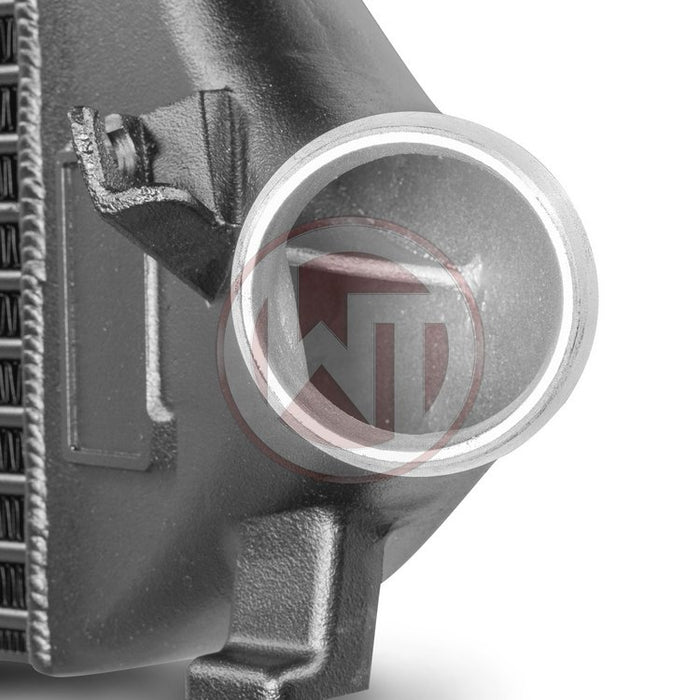

Inlet diameter: Ø67 mm/2,63 Inch (stock click-connection) ; Outlet diameter Ø61 mm/2,4 Inch (stock click-connection)
Dimensions stock intercooler:
V = 7,25 L / 442,4 Inch³
A = 966 cm² / 149,7 Inch²
Dimensions WAGNERTUNING intercooler:
V = 13,5L / 823,8 Inch³
A = 2418 cm² / 374,8 Inch²
kit comes with:
1 mounting material
1 installation instruction
