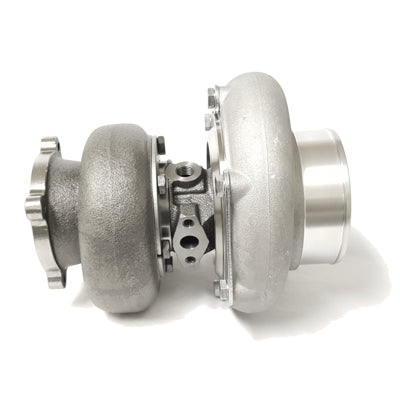

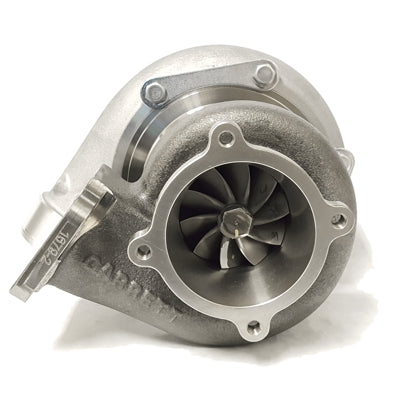

ATP Turbo Turbocharger, Gen2 GTX3584RS w/ T3 UND GT4BOLT .63 A/R hsg, Hose Connection Comp
by ATP Turbo
Save 10%
Original Price
$5,971.90 NZD
Current Price
$5,374.71 NZD
SKU GRT-TBO-J35
Buy now pay later,no extra cost!
Payments from $537.47 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett Gen2 GTX3584RS with .63 A/R T3 undivided GT4BOLT exit turbine housing and hose connection compressor housing. Compact package capable of 1,000 HP.
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compact package capable of 1,000 HP
Product Specifications:
- Compressor Wheel Inducer: 67 mm
- Compressor Wheel Exducer: 84 mm
- Compressor Wheel Trim: 64
- Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
- Turbine Wheel Inducer: 68 mm
- Turbine Wheel Exducer: 62 mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Flange, T3 Inlet (Stainless Steel): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
- Flange, Discharge GT 4 Bolt 3" (Stainless Steel): Product Code: ATP-FLS-085 (ATP-FLS-013 -mild steel)
- Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: Product Code: ATP-GSK-018
NOTE: Alternate coolant and oil fittings and flanges are available
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 846098-5001S
