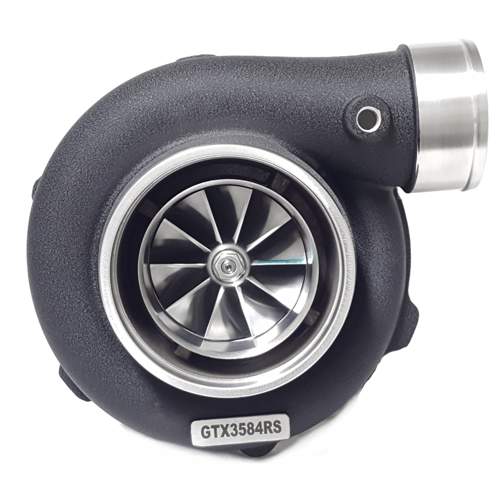

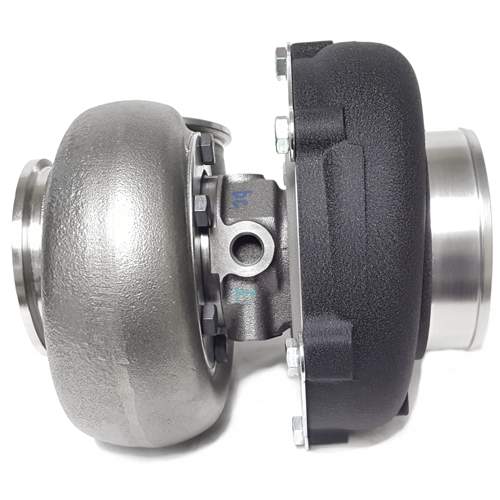

ATP Turbo Turbocharger, Gen2 GTX3584RS, Black Coated, T04E frame w/ 4" in/2.5" out, 1.21 A/R V-Band Turbine Hsg
ATP Turbo Turbocharger, Gen2 GTX3584RS, Black Coated, T04E frame w/ 4" in/2.5" out, 1.21 A/R V-Band Turbine Hsg

ATP Turbo Turbocharger, Gen2 GTX3584RS, Black Coated, T04E frame w/ 4" in/2.5" out, 1.21 A/R V-Band Turbine Hsg

by ATP Turbo
Save 10%
$6,310.44 NZD
$5,679.40 NZD
SKU GRT-TBO-K63
Buy now pay later,no extra cost!

Payments from $567.94 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Garrett Gen2 GTX3584RS dual ball bearing turbocharger with a black powder coated compact special T04E frame (4" inlet & 2.5" outlet) compressor housing and a 1.21 A/R Garrett stainless steel V-Band inlet and V-Band outlet turbine housing. Same external size as the GTX3076R except has a 2.5" high outlet hose connection instead of 2".

The Garrett Gen2 GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

Product Features:
  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Capable of 1,000HP
Product Specifications:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: T04E Frame with a 4" inlet and 2.5" outlet
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.21 A/R V-Band Inlet & V-Band Outlet

Coolant (water) & Oil Fittings, Flanges, and Components Solutions:

  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-191
  • V-Band Inlet Clamp: Product Code:CLC-CLA-047
  • GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
  • V-Band Outlet Clamp: Product Code:CLC-CLA-048

NOTE: Alternate coolant and oil fittings and flanges are available

Application Notes:

  • The Garrett Gen2 GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

Compressor & Turbine Maps:



Applicable Garrett Part Numbers:

  • 856804-5003S
