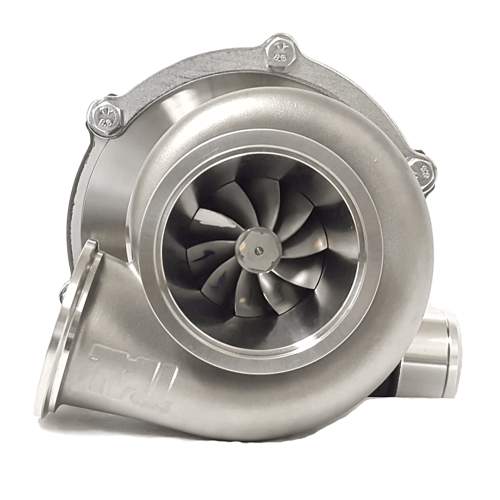

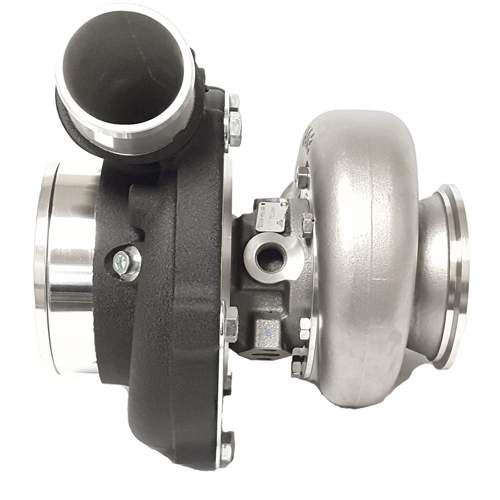

ATP Turbo Turbocharger, Gen2 GTX3071R, Black w/ .63 A/R TiAL SS V-Band Inlet, 3" V-Band Exit Tbn. Hsg
by ATP Turbo
Save 10%
Original Price
$4,598.83 NZD
Current Price
$4,138.95 NZD
SKU GRT-TBO-J88
Buy now pay later,no extra cost!
Payments from $413.89 with
Enjoy now. Pay Later. Interest free. Learn More
Black Garrett GEN II GTX3071R dual ball bearing turbocharger with a .63 A/R stainless steel TiAL v-Band inlet and v-band 3" Outlet turbine housing. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-094
- V-Band Outlet Clamp: Product Code:CLC-CLA-026
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Garrett Part Numbers:
- 851154-5002S
