ATP Turbo Turbocharger Garrett GTX4508R 108mm (80mm) w/ Compact 42, DIVIDED 1.28 AR T4
by ATP Turbo
Save 10%
Original Price
$8,833.58 NZD
Current Price
$7,950.22 NZD
SKU GRT-TBO-C41
Buy now pay later,no extra cost!
Payments from $795.02 with
Enjoy now. Pay Later. Interest free. Learn More

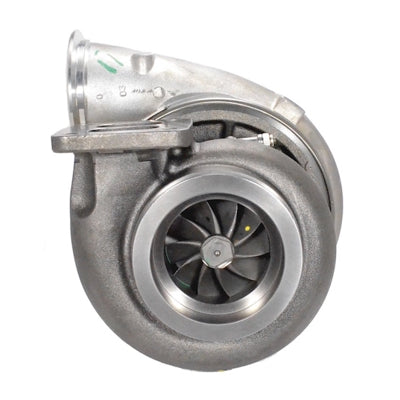

Garrett GTX4508R 108mm (80mm) turbocharger with Compact 42 footprint and divided T4 1.28 A/R turbine housing.
The latest ball bearing GTX-R series of the GT45 range is here on time for the race season. This is an even more efficient and more potent version which flows more HP and can handle a lot more boost. This unit is now capable of 1400HP.
- Turbine Wheel: 87.0mm w/ 85 trim
- Compressor Wheel: 108.0mm exd./79.8mm ind w/ 55 trim
Compressor & Turbine Maps:
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
- Oil feed flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-009
- Oil drain gasket: Product Code: GRT-GSK-007
- T4 Turbine Inlet Flange, Divided, Stainless: Product Code:ATP-FLS-057 (Mild Steel)
- Gasket, T4 (T04) Turbine Inlet - DIVIDED: Product Code:ATP-GSK-014
NOTE: Alternate coolant and oil fittings and flanges are available.
Applicable Garrett P/N's:
800270-5001S
