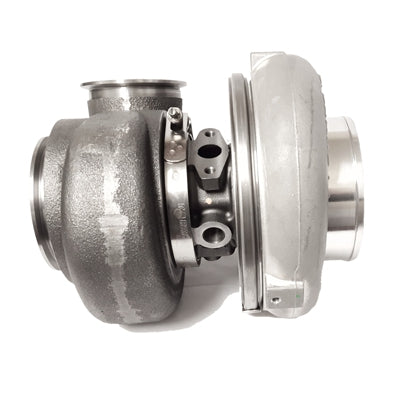

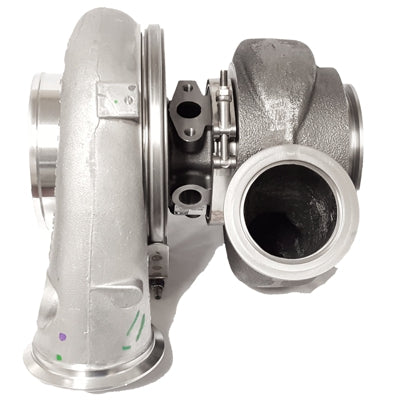

ATP Turbo Turbocharger - Garrett GTX4294R W/ ATP UND VB 1.28 A/R
Buy now pay later,no extra cost!
Payments from $660.33 with

Garret GTX4294R ball bearing turbocharger with ATP undivided v-band 1.28 A/R turbine housing. Supports over 1,000HP!
Product Specifications:
Compressor Wheel Inducer: 70.3mm
Compressor Wheel Exducer: 94mm
Compressor Wheel Trim: 56
Compressor Housing: 60 A/R
Turbine Wheel Inducer: 82mm
Turbine Wheel Exducer: 75.1mm
Turbine Wheel Trim: 84 trim
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
Oil feed flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
Oil feed gasket: Product Code: GRT-GSK-011
Oil drain flange: Product Code: ATP-FLA-009
Oil drain gasket: Product Code: GRT-GSK-007
V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-095
V-Band Inlet Clamp: Product Code:CLC-CLA-027
V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-096
V-Band Outlet Clamp: Product Code:CLC-CLA-028
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
800269-5001S
