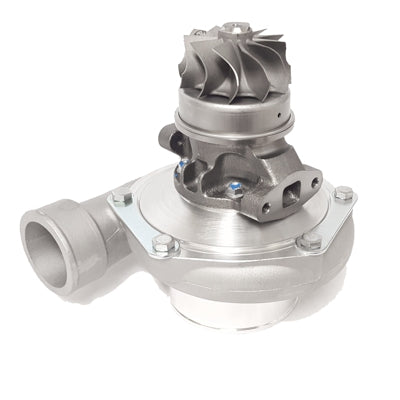

ATP Turbo Garrett GTW3684JB 62/62MM (aka GTW6262JB) Journal Bearing SuperCore (Turbo w/o Tbn Hsg) P/N: 841297-
by ATP Turbo
$1,725.14 NZD
SKU GRT-TBO-H53
Buy now pay later,no extra cost!
Payments from $172.51 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTW3684JB 62/62MM (aka GTW6262JB) journal bearing supercore (turbo w/o turbine housing). 750 HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
Product Specifications:
- Compressor Wheel Inducer: 62.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 54
- Turbine Wheel Inducer: 71.0mm
- Turbine Wheel Exducer: 61.9mm
- Turbine Wheel Trim: 76
- Compressor Housing is T04E Frame with 4" inlet, 2" outlet, and built-in & machined anti-surge.
- NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
- External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
- GTW Series Ball Bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-042
- Oil drain gasket: Product Code: ATP-GSK-027
- T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .63, or .82 A/R) Default / Standard Option
- T3 Inlet and V-Band, 2.5 inch Outlet (Available in .63 or .82 A/R)
- T3 Inlet and machined V-band 2.5 inch Outlet (Available in 1.08 A/R)
- T3 Inlet and welded 3.0 inch GT V-Band (90mm OD) Outlet (Available in .63, .82, or 1.08 A/R)
- T3 Divided inlet and 4 Bolt, 3.0 Inch Outlet (Available in 1.16 A/R)
- T3 Divided inlet and 3.0 Inch V-Band Outlet (Available in .78 A/R)
- T3 Divided inlet and 3.0 Inch V-Band Outlet Adapter (Available in 1.16 A/R)
- T3 Inlet and 5 Bolt Ford Style Outlet (Available in .63 or .82 A/R)
- T4 Inlet and V-Band, 3.0 inch Outlet (Available in .70 A/R)
- V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .63 or .82 A/R)
- 841297-5002S
