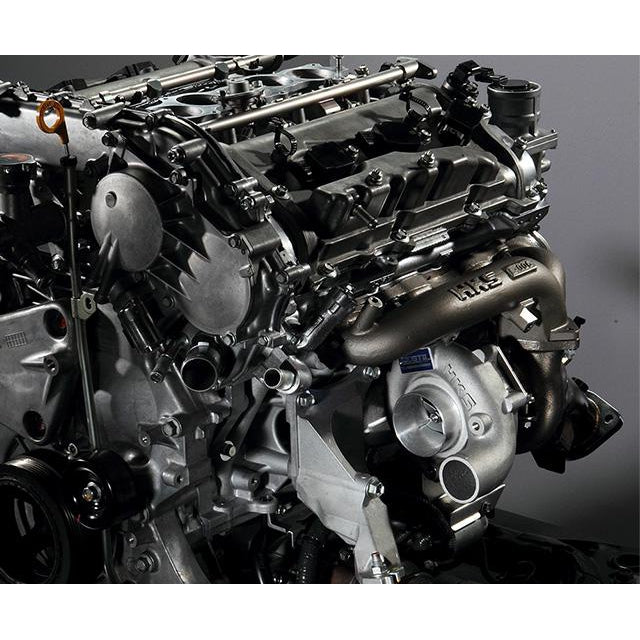

HKS R35GT-R GT800 Full Turbine Kit
by HKS
$17,965.67 NZD
SKU 11003-AN011
Buy now pay later,no extra cost!
Payments from $1,796.56 with
Enjoy now. Pay Later. Interest free. Learn More
*sold individually*
HKS R35Gt-R Gt800 Full Turbine Kit
R35 GT-R goes to the ultimate speed range...
For the ultimate performance, HKS' in-house design and manufacturing GT II Turbine with "Symmetry Twin Turbo Layout" with the latest technology made it. As the total performance products manufacturer, HKS does not just develop a product, but has done a lot of field tests with combination of various products so that anybody in the world can achieve more than 800 horsepower. It can be offered as total vehicle performance products package.
Features:
- HKS' in-house design and manufacturing "Special GT II Turbine" was developed exclusively for this turbine kit. These special designed GTII Turbines enables to utilize the ideal symmetry layout of the normal and reverse revolution turbines.
- To prevent heat problem, "Special heat resistance cast metal exhaust manifold" was developed.
- Piping for oil and water was exclusively designed for R35 GT-R to be more durable to use in high temperature.
- Compact & lightweight GT II Wastegate enables precision boost pressure
Performance

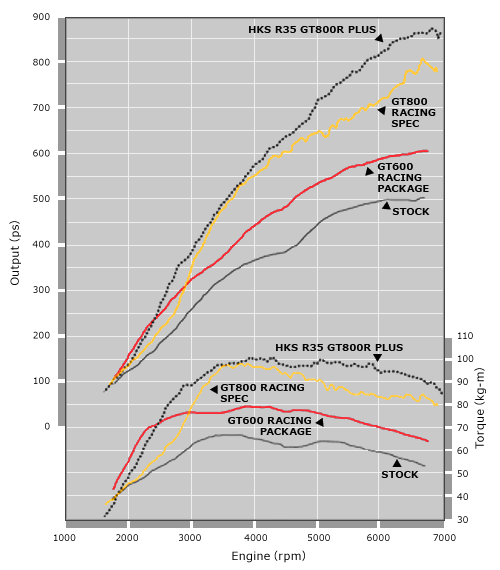

HKS R35 Power Data: GT800+ vs GT800 vs GT600 vs Stock
| Power | Torque | Boost | |
| GT800+Racing SPEC | 859ps / 6820rpm | 103.9kg-m / 3950rpm | 165-155kPa |
| GT800 Racing SPEC | 804ps / 6790rpm | 98.7kg-m / 3850rpm | 165-155kPa |
| GT600 Racing package | 601.6ps / 6640rpm | 78.9kg-m / 3860rpm | 120kPa |
| STOCK | 501.6ps / 6630rpm | 66.4kg-m / 3810rpm | Stock |
| Ref. Boost Press:Output | |
| 90kPa | 570ps (EVC OFF) |
| 120kPa | 約700ps |
| 140kPa | 約750ps |
| 160kPa | 約800ps |
- The specifications of the test vehicle are based on the GT600 Racing Package upgrading the engine parts and fuel parts and using the R35 Full Control System.
Components:

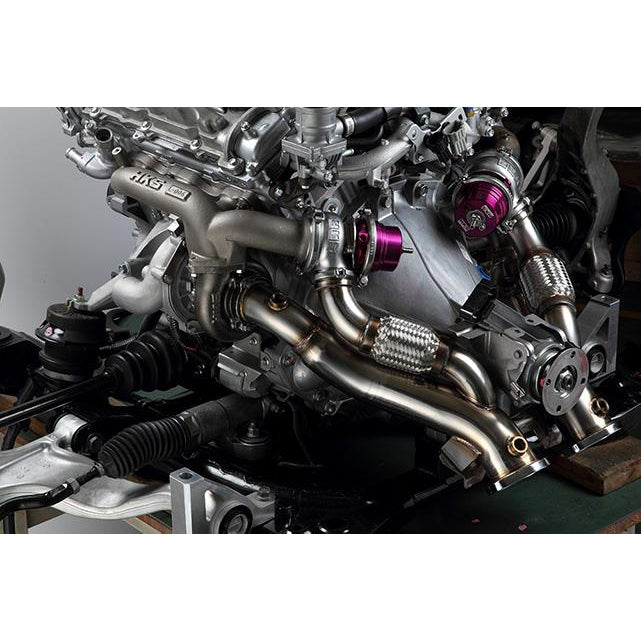

| Main parts | |
| Exhaust Manifold | Heat Resistance Cast Metal / φ52 Pipe |
| Turbine | GT II 7460 Heat Resistance Steel Casting Cast Steel (T/HSG) |
| Wastegate | HKS GT II φ50 |
| Front Pipe | SUS304 φ60→φ75 |
| Suction Pipe | Buffed AL φ70 Between Turbine and Cleaner Box (*) |
| Others | |
- The factory air cleaner box must be used
Remarks:
- The engine must be removed in order to install this kit.
- This kit does not include the following parts: Fuel Pumps, Injectors, EVC, engine parts and Engine Management such as the HKS F-CON.
- Upgrading the engine internals is necessary when using this kit at high engine outputs.
- The boost pressure setting for the provided Wastegates is approximately 90 to 95 kPa (13 to 13.8 PSI).
- The factory water pipe must be modified.
- The factory Turbocharger heat insulator must be modified.
- This kit was developed exclusively for off-road race use only. HKS will not be responsible for engine and/or transmission damage caused by the use of this kit.
- This kit must be used without the catalytic converters. Because of this, the vehicle cannot be driven on any public roads or highways.
- Any vehicle with this kit installed may void the factory manufacturer’s warranty.
| MODEL | Control | Power | Compressor wheel | Compressor housing | Turbine wheel | Exhaust housing | ||||||||
| device | per | |||||||||||||
| turbine | Trim | Inlet | Outlet | Inlet | Outlet | A/R | Trim | Inlet | Outlet | Inlet | Outlet | A/R | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | flange | flange | |||||||
| GT II 7460/ | Wastegate | 450 | 49 | 52 | 74 | 70 | 50 | 0.82 | 81 | 60 | 54 | R35 | R35 | 0.75 |
| GT II 7460R | only | only | ||||||||||||
