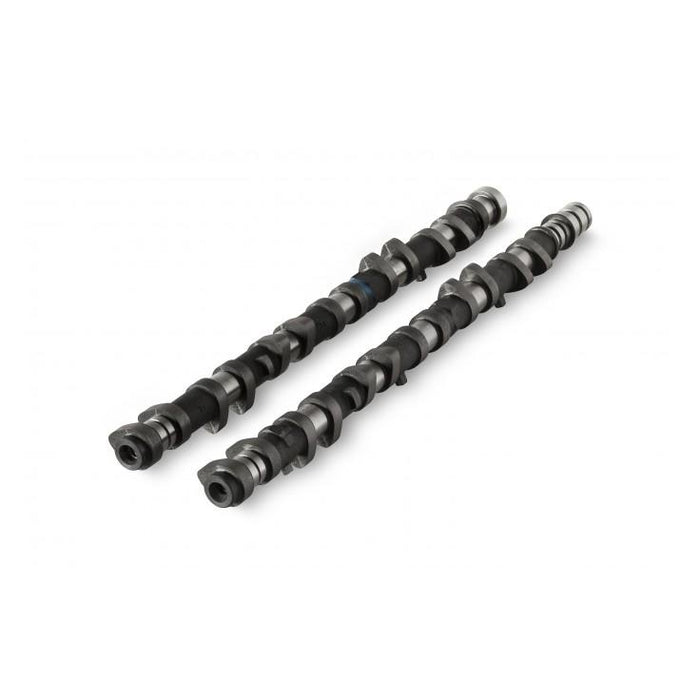

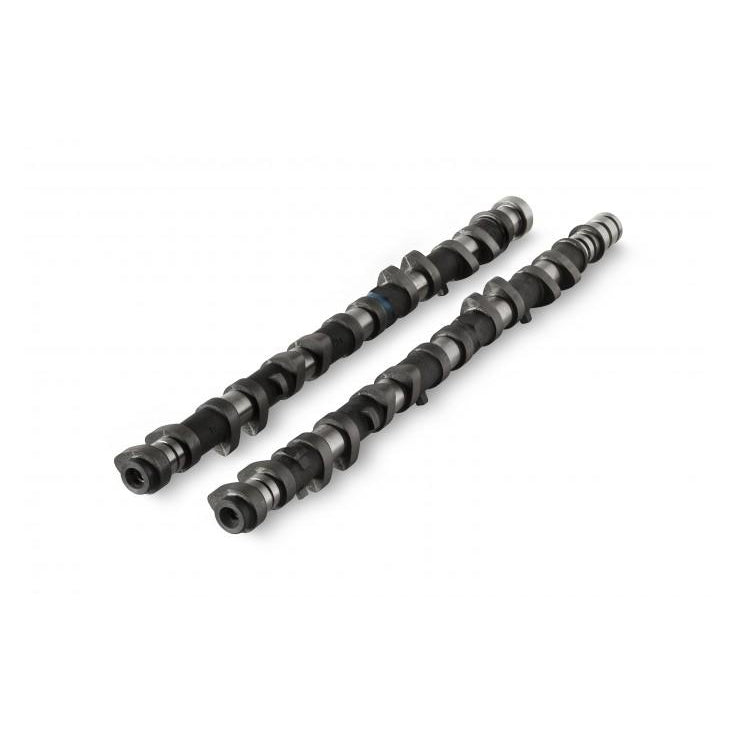

Kelford Cams V229-A Toyota 1JZ VVTi Billet Race Cams
Buy now pay later,no extra cost!
Payments from $147.08 with

Note: Please check availability with us before ordering.
248/248 Degrees advertised duration. 8.70mm/8.70mm lift.
Additional Information:
High performance street cams for a near stock engine to suit up to 30 lb boost and 7000 RPM with our recommended valve spring. Will suit stock valve spring with stock redline
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| TOYOTA | 1JZ VVTi | V229-A | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 8.95mm | Exhaust: | 8.95mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 8.70mm | Exhaust: | 8.70mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 248 | Exhaust: | 248 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 210 | Exhaust: | 210 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 4 ATDC | EVO: | 44 BBDC | |
| IVC: | 34 ABDC | EVC: | 14 BTDC | |||
| Suggested Centre Lines: | Intake: | Vari | Exhaust: | 116 | ||
| VALVE | Lift @ TDC | Intake: | 0.68mm | Exhaust: | 0.06mm |
