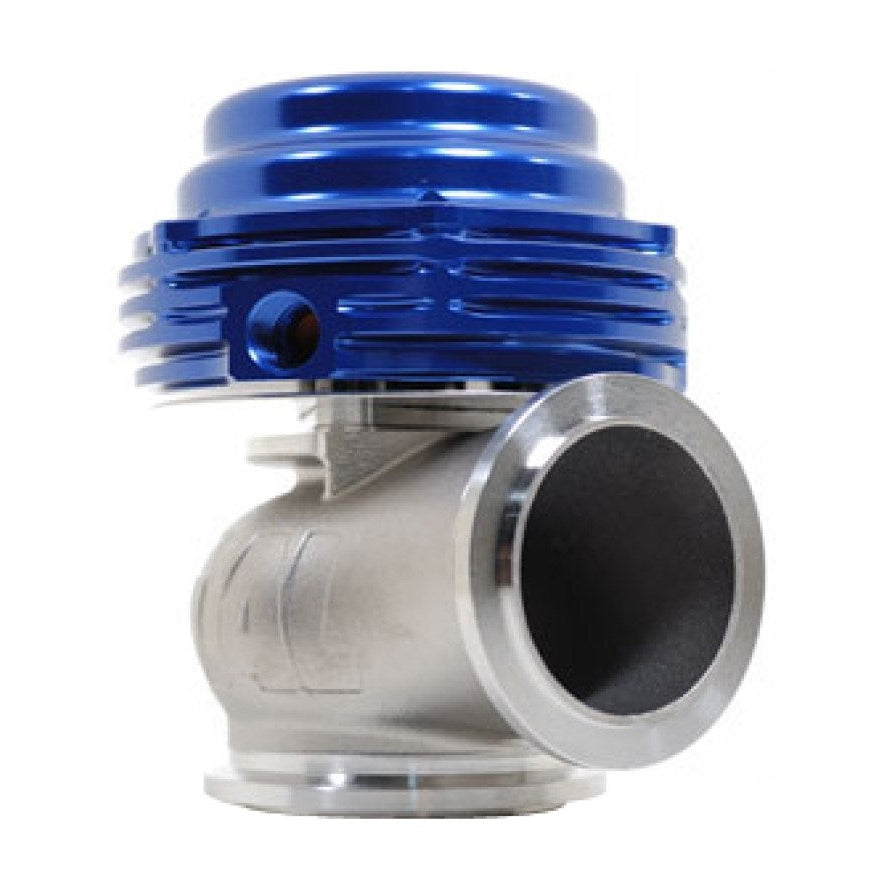

TiALSport MVS Wastegate (All Springs) w/V-Band Clamps - Blue
Buy now pay later,no extra cost!
Payments from $80.19 with
DUE TO THE CUSTOM-BUILT NATURE OF THE MV-SERIES, LEAD TIMES MAY VARY.
The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7” in height. The v-flanged design allows for significantly more flexibility for fabrication and installation.
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- 3 lower ports and 2 top air signal ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall.
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!
- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator housing to keep the temperatures down in extreme conditions.
Included in the package:
- MV-S Assembly
- Inlet V-band Clamp & Flange
- Outlet V-Band Clamp & Flange
- CNC machined air and coolant fittings
- Plugs for unused air ports
- All six optional springs
