Mishimoto Race Top-Mount Intercooler Kit, Fits Subaru WRX 2015+
Buy now pay later,no extra cost!
Payments from $272.28 with
Are you looking for a way to reduce high intake temperatures on your stock or modified 2015+ Subaru WRX? The solution is the Mishimoto direct-fit 2015+ Subaru WRX Race top-mount intercooler kit engineered specifically for your highly modified 2015+ Subaru WRX. The stock 2015+ Subaru WRX intercooler is prone to heat soak during repeated wide open throttle pulls and during track use.

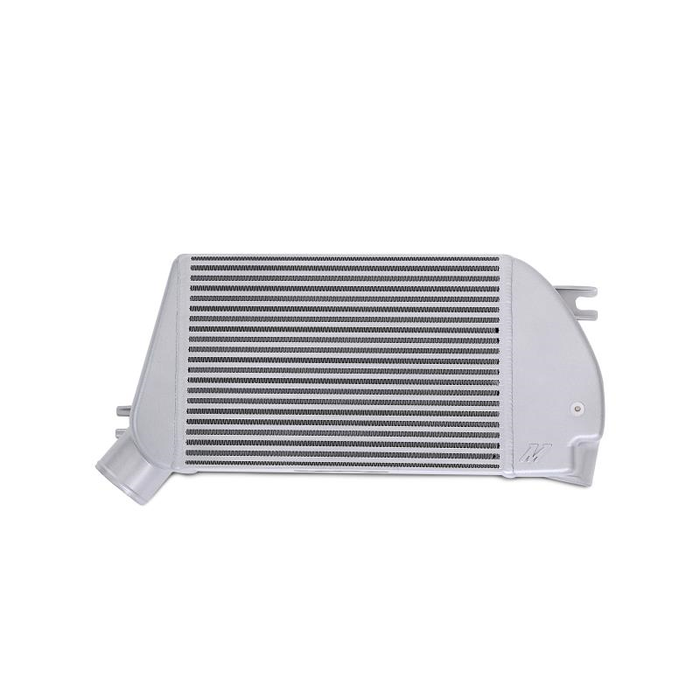

Mishimoto engineers spent months designing the 2015+ Subaru WRX parts and testing this top-mount intercooler to ensure optimum performance on your highly modified WRX. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient, dense bar-and-plate core. The Mishimoto 2015+ Subaru WRX intercooler has a 4” thick core and a total volume of 625 cubic inches, making it one of the largest top-mount intercoolers you can buy.
Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support your vehicle from stock up to 500 whp. This WRX intercooler endured rigorous testing, showing a 35°F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015+ Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto’s innovative 2015+ Subaru WRX charge-pipe, utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015+ Subaru WRX top-mount intercooler.
The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose, an intercooler to throttle body hose, and a new bypass valve hoses. These 2015+ Subaru WRX parts negate the need to gather supplies for installation, and they ensure years of reliable service. This Subaru WRX intercooler is available in a durable powder-coated finish of Silver and Black, with your choice of either a polished, wrinkle black, or wrinkle red pipe, and, like all our Subaru WRX parts, this top-mount intercooler kit includes the Mishimoto Lifetime Warranty.
Features:
- Direct fit for the 2015+ Subaru WRX
- Designed for optimal performance on highly modified vehicles using stage 2+ tuning
- Power gains of up to 15 whp and 8 wtq on performance tune
- 35°F temperature drop compared to stock intercooler on performance tune
- 100% aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core

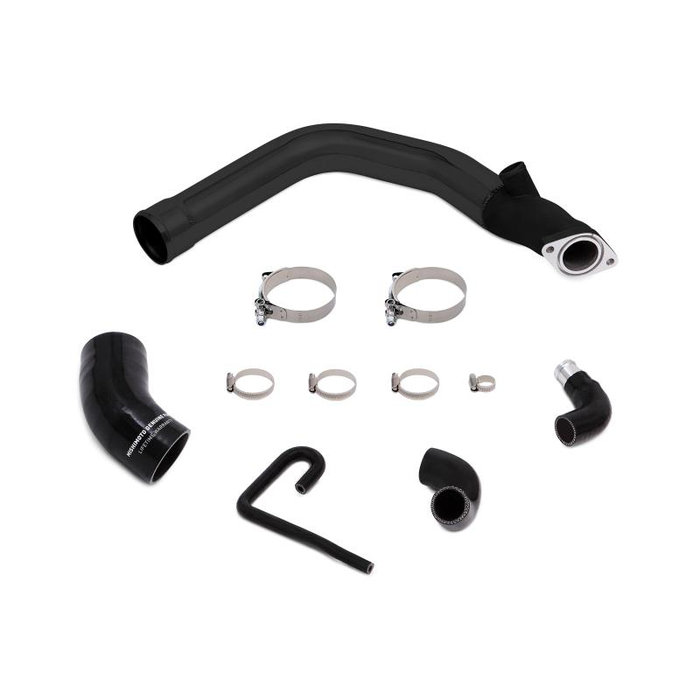

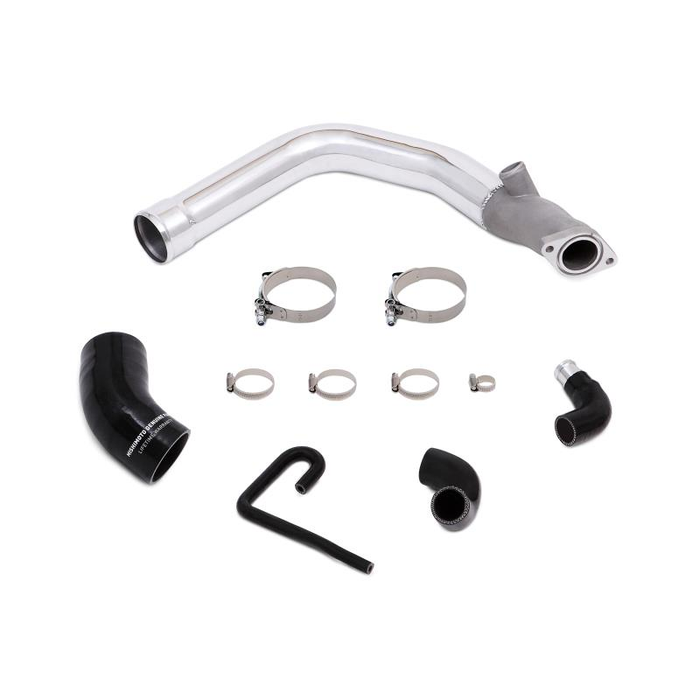

- Mandrel-bent aluminum Mishimoto charge-pipe included to increase flow characteristics
- Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
- Includes new BPV hoses, hot side coupler, and silicone throttle body hose
- Pre-marked area for NPT sensor

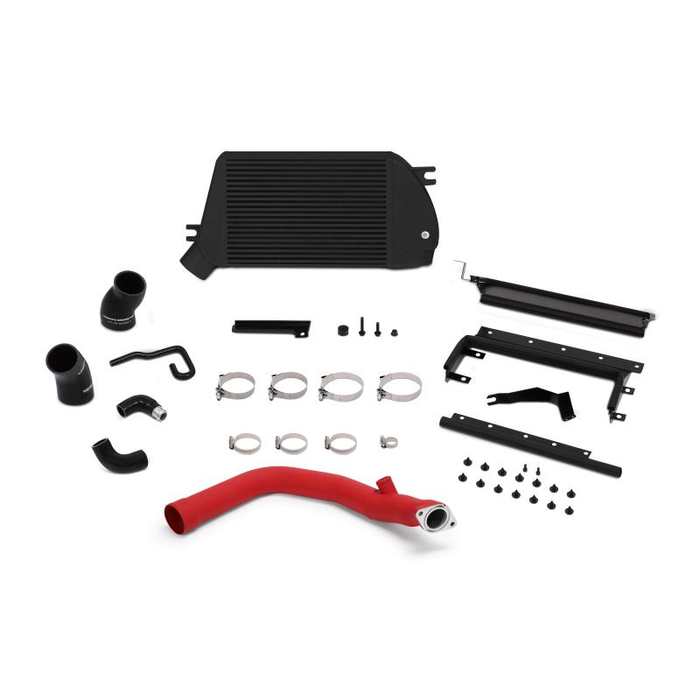

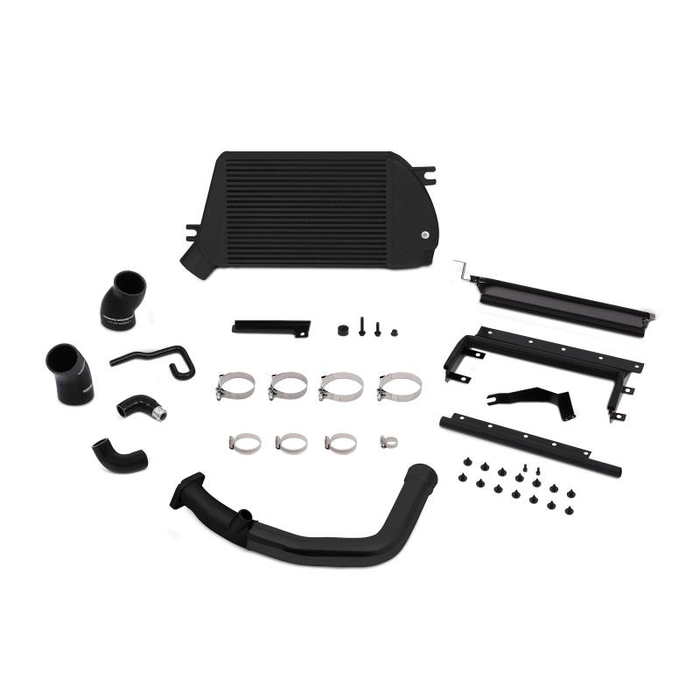

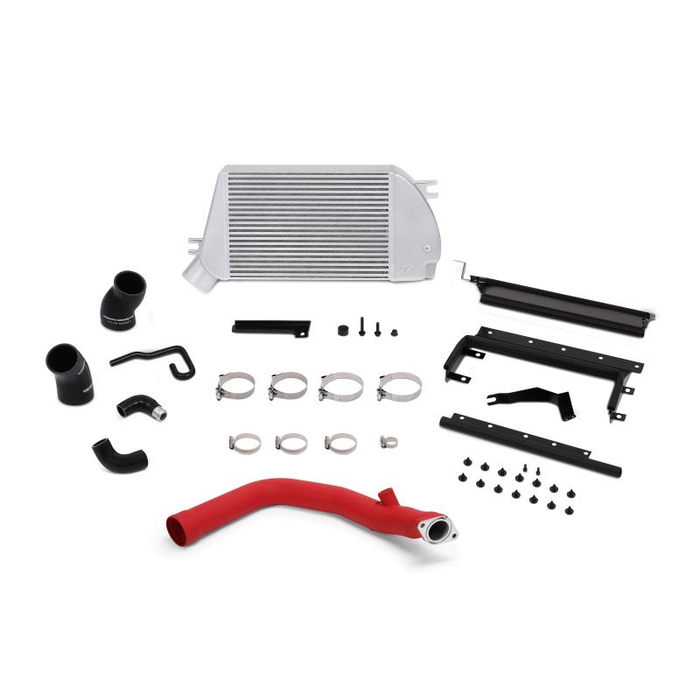

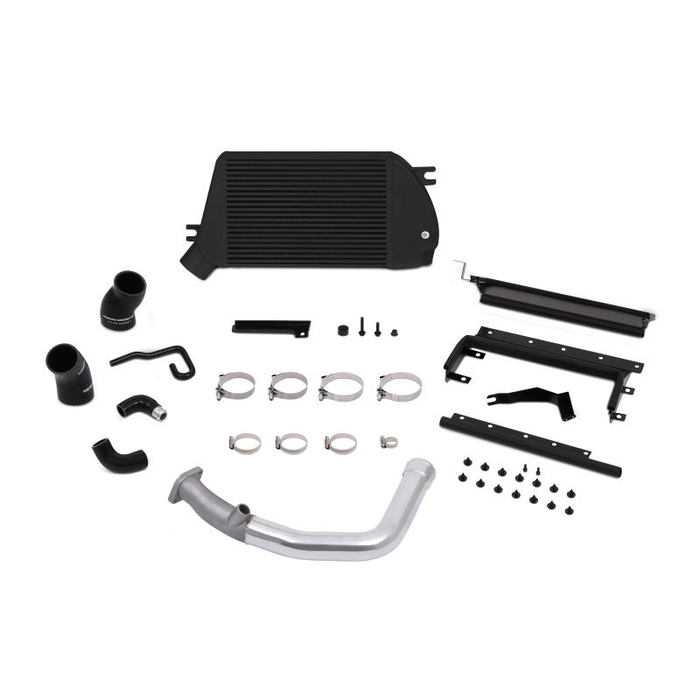

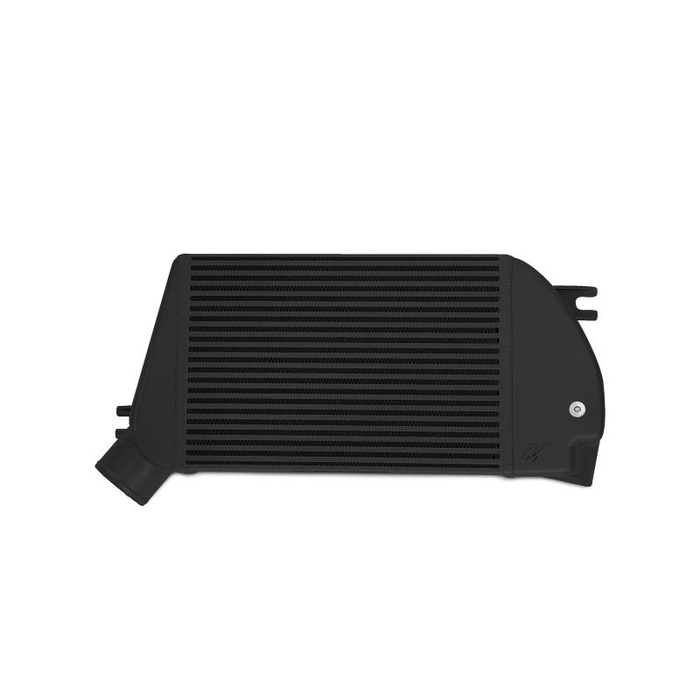

- Available in silver or black intercooler with the option of a polished, black or red hot-side charge pipe
- CARB EO #: D-759
- Mishimoto Lifetime Warranty

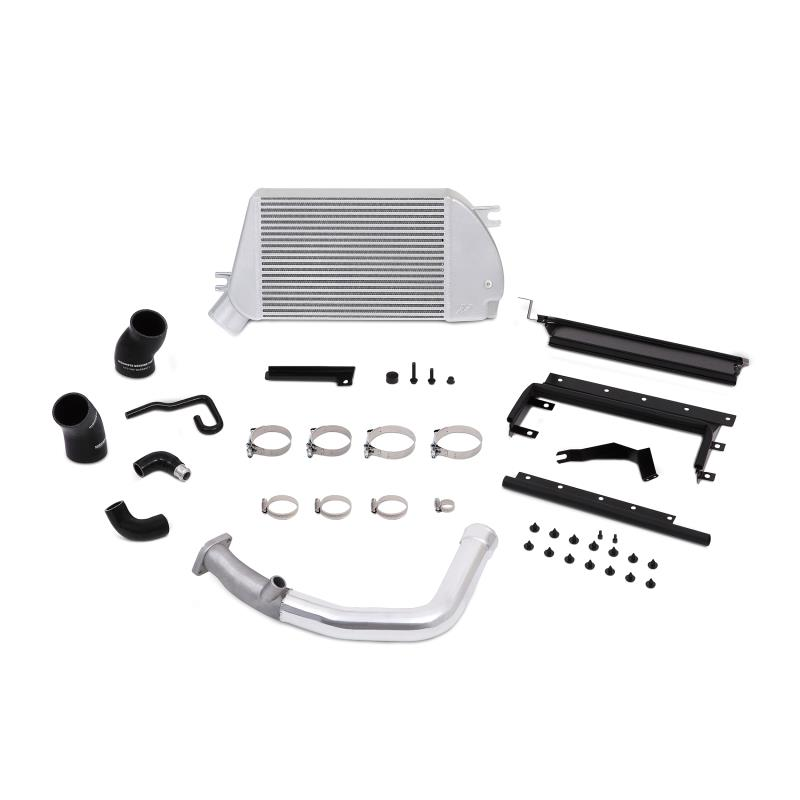

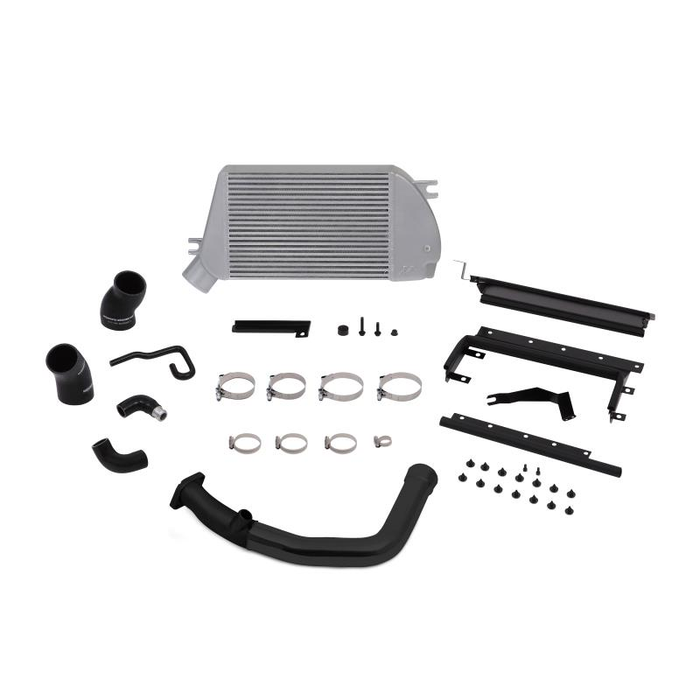

Purchase Includes:
- (1) Bar-and-Plate Intercooler
- (1) Optional Charge-Pipe
- (1) Intercooler Mounting Bracket
- (1) Air Diverter with Attached Rubber Gaskets
- (1) Charge-Pipe to Intercooler Hose
- (1) Intercooler to Throttle Body Hose
- (3) Bypass Valve Hoses
- (2) 3" T-bolt Clamp
- (2) 3.5" T-bolt Clamp
- (4) Worm-Gear Clamps
- Mounting Hardware
- Mishimoto Lifetime Warranty
Vehicle Specifications:
| Make | Subaru |
| Engine Codes | FA20DIT |
| Chassis Codes | VA |
| Fits | 2015+ WRX 2014-2018 Forester XT |
Product Specifications:
| Installation Torque Specs | 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M). |
| Pipe Diameter | ID: 2.19" at the turbo transitioning to 2.60" at the intercooler hose OD: 2.75" at the intercooler hose |
| Constant Tension T-Bolt Clamps Specs | (2) 3" T-bolt Clamp (2) 3.5" T-bolt Clamp (4) Worm-Gear Clamps |
| Core Thickness | 4" |
| Hot-Side Intercooler Pipe Specs | I.D. 2.19" at the turbo, transitioning to 2.60" at the intercooler hose O.D. 2.75” at the intercooler hose CHARGE-PIPE TO INTERCOOLER HOSE SPECS 2.75" I.D. 3.15" O.D. 4mm thick |
| Intercooler/Throttle Body Coupler Specs | 2.75" I.D. 3.15" O.D. 4mm thick |
| Weight | 24.5 lbs |
| Coating | Powder Coated |
| Tank Wall Thickness | 3.5mm |
| Fin Pitch | Internal: 4.7mm fin height, 2.8mm fin pitch External: 4.7mm fin height, 1.7mm fin pitch |
| Max Rec. PSI | 35 psi |
| Outlet | 3" |
| Inlet | 2.5" |
| Core Size | 15" x 10" x 4" |
| Overall Width | 5" |
| Overall Height | 10" |
| Overall Length | 24" |
| Construction | Bar-and-Plate |
| Max Rec HP | 450 whp |
