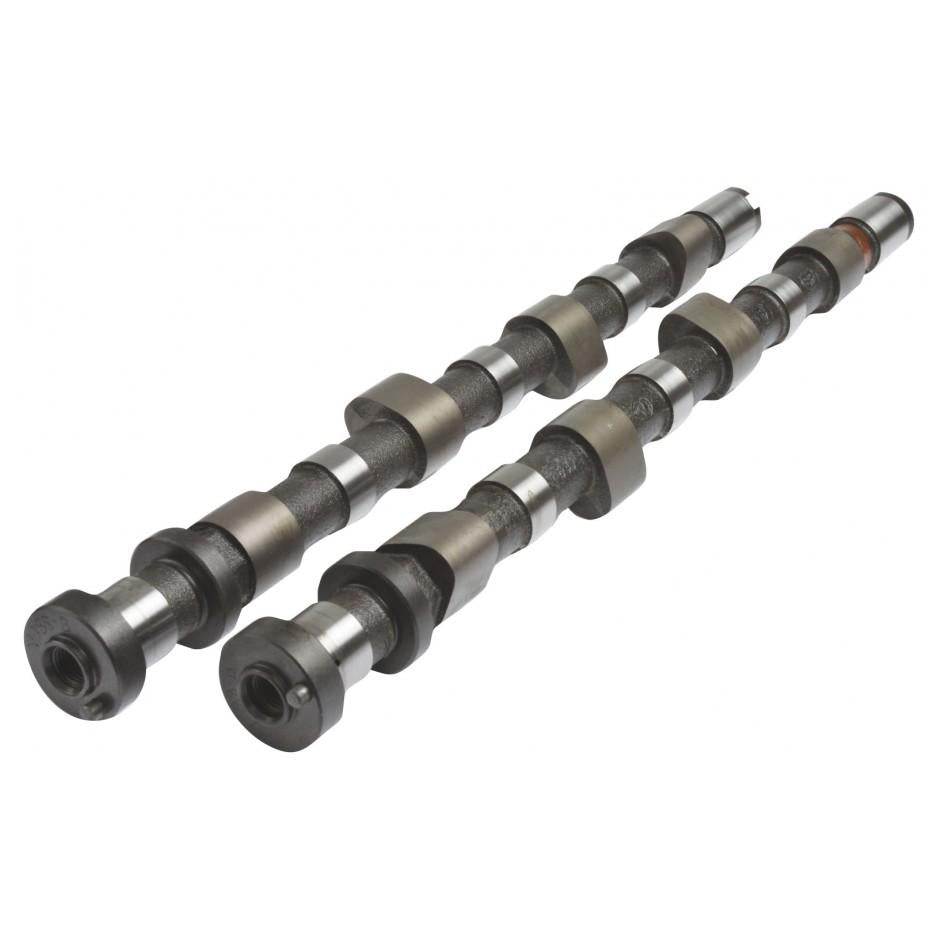

Kelford Cams 188-EZ Nissan SR20-DET S13 Turbo Performance Cam

$907.35 NZD
SKU KC188-EZ
Buy now pay later,no extra cost!

Payments from $90.73 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

254/254 Degrees advertised duration, 11.30mm/11.30mm lift.

Additional Information:

Drop-In cam to suit factory valve springs. Must retain stock rev limit and not exceed 1.5 bar of boost.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR20DET S13 TURBO 188-EZ
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 7.29mm Exhaust: 7.29mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 11.30mm Exhaust: 11.30mm
Advertised Duration @ 0.10mm Intake: 254 Exhaust: 254
Duration @ 1.00mm VALVE LIFT Intake: 220 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: 2 BTDC EVO: 42 BBDC
    IVC: 38 ABDC EVC: 2 BTDC
Suggested Centre Lines:   Intake: 108 Exhaust: 112
VALVE Lift @ TDC Intake: 1.17mm Exhaust: 0.84
