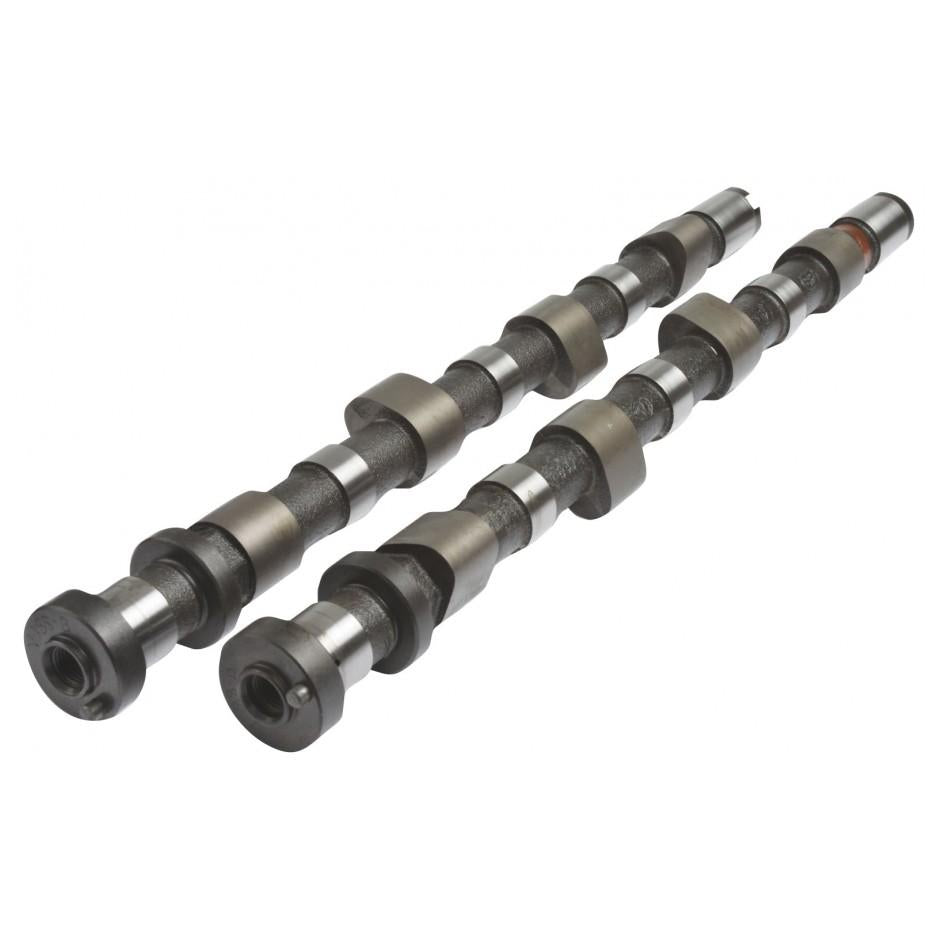

Kelford Cams 188-D Nissan SR20-DET S13 Turbo Performance Cam

$907.35 NZD
SKU KC188-D
Buy now pay later,no extra cost!

Payments from $90.73 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

284/290 Degrees advertised duration, 12.50mm/12.00mm lift.

Additional Information:

284/290 Degree drag racing cams to suit large turbo, high boost SR20 motors using E85 or Methanol. Requires KVS93-BT valve springs.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR20DET 188-D
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 8.06mm Exhaust: 7.74mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 12.50mm Exhaust: 12.00mm
Advertised Duration @ 0.10mm Intake: 284 Exhaust: 290
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 246
Timing @ 1.00mm VALVE LIFT IVO: 10 BTDC EVO: 61 BBDC
    IVC: 50 ABDC EVC: 5 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 118
VALVE Lift @ TDC Intake: 2.06mm Exhaust: 1.47
